ProFold Model 216 Feeder/Accumulator/Folder- 320007

Quantity:

0
MSRP:
$32,500.00

Price You Pay:

$29,167.00

Estimated Oversize Handling Fee :

$400.00
Sorry, Currently Out Of Stock
This Item Has Been Discontinued.
Availability
Online
In Store
Same Day

Description

DISCONTINUED. (WE CAN PROVIDE JUST PARTS) FEEDER/ACCUMULATOR/FOLDER

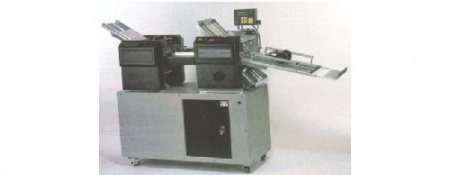

The Profold Model 216 is a stand-alone compact, intelligent feeder / accumulator / folder. It has a vacuum bottom sheet feeder that feeds pre-collated sheets into the accumulator section. The solid state electronic package includes batch counting, double sheet detection, sequence verification and OMR functions. The folder section is equipped with Profold's proprietary "Prothane" fold rollers. "Prothane" rollers have no affinity to laser or copier toner, providing longer roller life. The two-fold plates will produce Letter, Half, "Z" or Double Parallel folds. The Model 216 operates at a maximum throughput speed of 5000 sets per hour (three sheets of 8 and 1/2" x 11" paper folded in any of the above fold configurations). It will feed, count, accumulate and fold a maximum of six sheets letter-folded or ten sheets half-folded (8 and 1/2 " x 11" 20 lb stock).



The Profold Model 216 will accept sheets of stock from 8 and 1/2" x 11" x 17". It can handle stapled or non-stapled sets. The folder section is capable of folding various set sizes of pre-collated sheets under two fold roller gap-set settings



FEATURES


  • Capable of accepting sheets of stock from 8 and 1/2" x 11" to 11" x 17"
  • Handles stapled or non-stapled sets
  • Batch Counting, OMR and Double Sheet Detection to maintain set integrity
  • Proprietary "Prothane" fold rollers have no affinity to laser or copier toner, providing longer life
  • Equipped with fold roller gap-set system-capable of handling variable number of sheets with a simple adjustment
  • Equipped with Feeder Jam Detection
  • Warranty: One year on all Profold parts excluding normal wear parts

SPECIFICATIONS


  • Product Size Maximum 11� x 17 inches Minimum 8 and 1/2 x 11 inches
  • Maximum Throughput 5,000 sets per hour (three sheets folded in any configuration)
  • Max No. of Sheets: (Feed/Count/Accumulate/Fold) 6 sheets/letter-folded* 10 sheets/half-folded* (8 and 1/2 x 11 inches of 20 lb stock)
  • Number of Fold plates: 2
  • Drive Motor 1/3 HP DC variable speed
  • Electrical Requirements: 220 VAC 60HZ 10 amp, single phase
  • Dimensions 99 L x 19 and 1/4 W x 41 H inches
  • Weight: 496 lb.

    OPTIONS


    • Bar Code Scanner
    • Spare Parts Kit

  • Specifications

    Manufacturer Part #: 216 320007
    Dimensions (LxWxH): 99.00in. x 91.00in. x 41.00in.

    SPECIFICATIONS
  • Product Size: Maximum 11 x 17 inches and Minimum 8 and 1/2 x 11 inches
  • Maximum Throughput: 5,000 sets per hour (three sheets folded in any configuration)
  • Max No. of Sheets: (Feed/Count/Accumulate/Fold) 6 sheets/letter-folded* 10 sheets/half-folded* (8 and 1/2 x 11 inch 20lb stock)
  • Number of Fold plates: 2
  • Drive Motor 1/3 HP DC variable speed
  • Electrical Requirements: 220 VAC 60HZ 10 amp, single phase
  • Dimensions 99 L x 19 and 1/4 W x 41 H inches
  • Weight: 496 lb.
