Description

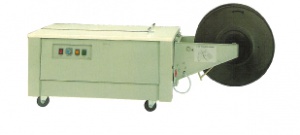

Preferred Pack SP-1L Semi Automatic Fixed Base Tension Chord Strapping Machine with Low Table Height

Lower Table Height Makes for Easier Maneuverability of Packages, and Much Safer When Working With Larger Heavier Packages.

The SP-1L is 3.1 Inches Lower Than The SP-1 Strapping Machine.

Advanced Technology in High Performance Strapping Machines

Semi Automatic Strapping Machine
Preferred Pack SP-1 with:

Box type Construction for Maximum Rigidity and Stability
Patented Compression Strap Dispenser

The Preferred Pack SP-1 Semi Automatic Strapping Machine contains only the highest of quality materials and technology. This Semi Automatic Nylon Banding Machine is a must have for any packaging line. The Preferred Pack SP-1 Strapping Machine is SAFE, EFFICIENT and EASY TO USE.

The SP1 strapping machine is the perfect machine for applying straps for packaging purposes. The SP1 incorporates an electro magnetic censoring system that creates lighter and stronger tension ranges than with the conventional trip arm system. A steel feed roller keeps the strap centered while feeding, regardless of strap size.

Whatever the specifications, we can supply the highest quality semi automatic strapping machines on time, every time. Our greatly expanded choice of strapping machines are the product of the latest engineering and technological advances, assuring you consistent quality, order after order.

FEATURES

• Electro Magnetic Tension Detector (Patended)
  This revolutionary new design incorporates and electro magnetic censoring system that guarantees both lighter and stronger tension ranges than with the conventional trip arm system.
• PC Board Control
  Includes functions designed to assist in making repairs and maintemance easier. For example, sixty second automatic shut off and cooling time adjustment.
• Steel Feed Roller (Patented)
  Ensures strap is kept centered while feeding, irrelevant of strap size.
• Newly Designed Compression Strap Dispenser (Patented)
  Assures the smooth feed of strap during operation and always keeps the strap in the correct position during feed.
• Tension Adjustment On Control Panel (Operation)
  A tension control is provided on the control panel permitting the operator to adjust the tension conveniently. This convenient adjustment device is an optional and highly desired accessory.
• Easy To Lift Table Top
  Eliminating the conventional, troubleshooting methos of lifting the table top, this unit is specially designed with a simple, easy to lift design. This feature makes access fro maintenance and servicing easy.

SPECIFICATIONS

• Power Supply :....Single Phase 110V/60Hz, 220V/50Hz, 220V/60Hz, 240V/50Hz
• Power Consumption :....0.65 Kva
• Driving Motor :.... Single Phase 0.25 HP
• Maximum Tension :....60 Kgs.
• Strap Width :....6mm- 15mm
• Minimum Package Size :.... 2.36 INCHES (60mm)
• Maximum Package Size :....Any Size
• Strapping Speed :.... 1.5 seconds per strap
• Joint of Strap :....Heat Sealed
• Strap Coil Size :....7.8", 11.02" (200,280mm) (OPTIONAL)
• Machine Dimensions :.... 59.4 x 22.2 x 25.8 INCHES (1510x565x655mm)
• Weight :.... 176 Lbs. (80Kgs.)

Also Available in Stainless Steel
