Description

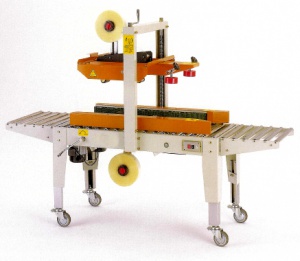

Truline TP-701-20 Semi Automatic Carton Sealing Machine (20"x20")

The Truline TP-701-20 is a semi automatic carton sealer with easy manual carton size adjustment. Side drive belt design. Features the new universal tape head that will run 2" or 3" tape with no changeover required. The operator simply folds the top flaps of the corrugated carton and machine. The TP-701 applies a single tape strip to both the top and bottom of the case simultaneously. This two belt drive design is a heavy duty versatile machine designed for dependable performance and easy operation. The TP-701 can easily be adjusted in only seconds to process a different size carton. Excellent for low profile, small, lightweight boxes.

SPECIFICATIONS

• HEIGHT : 5" Min., 20" Max.
• WIDTH : 4" Min., 20" Max.
• Power : 110 Volts- 10 amps - single phase



	TP-701 CLICK HERE	TP-701-20 CLICK HERE	TP-701-26 CLICK HERE	TP-701-LP CLICK HERE	TP-701-DB CLICK HERE	TP-701-A CLICK HERE
Carton Height	MIN.-4" MAX.-20"	MIN.-4" MAX.-20"	MIN.-4" MAX.-26"	MIN.-2.5" MAX.-20"	MIN.-4" MAX.-20"	MIN.-4" MAX.-20"
Carton Width	MIN.-5" Max.-13.5"	MIN.-5" MAX.-20"	MIN.-5" MAX.-26"	MIN.-5" MAX.-13.5"	MIN.-5" MAX.-13.5"	MIN.-5" MAX.-13.5"
Tape Head Feet	2" or 3"	2" or 3"	2" or 3"	2" or 3"	2" or 3"	2" or 3"
Top or Bottom Tape Head	Both	Both	Both	Offset	Both	Side Drive Belts
Machine Dimensions (LxWxH)	49"x27"x53"	49"x27"x53"	49"x27"x53"	49"x27"x53"	49"x27"x53"	49"x27"x53"
Machine Speed	75 ft./ min.	75 ft./ min.	75 ft./ min.	75 ft./ min.	75 ft./ min.	75 ft./ min.
Weight	280 Lbs.	280 Lbs.	280 Lbs.	280 Lbs.	280 Lbs.	280 Lbs.
Electrical	110 Volts 1 Phase 10 Amps	110 Volts 1 Phase 10 Amps	110 Volts 1 Phase 10 Amps	110 Volts 1 Phase 10 Amps	110 Volts 1 Phase 10 Amps	110 Volts 1 Phase 10 Amps
Stainless Steel	Available	NO	NO	NO	NO	Available
