Widmer RS-B-C Base No Dies Included Counter Machine

RS Series
RS-S - MODEL RS-S CHECK SIGNER WITH ONE SIGNATURE
RS-O - MODEL RS-O IMPRINTER WITH UP TO 4 LINES OF TEXT
RS-B - MODEL RS-B BASE MACHINE NO DIES INCLUDED
RS-B-C - MODEL RS-B NO DIES INCLUDED COUNTER MACHINE
RS-DBL - MODEL RS-DBL BASE LOCK TYPE DATE
RS-DBLT - MODEL RS-DBLT BASE LOCK TYPE DATE & 4 LINES OF TEXT
RS-PTV - MODEL RS-PTV (SIGNATURE W/TITLE,SEAL SECOND INK ROLLER)

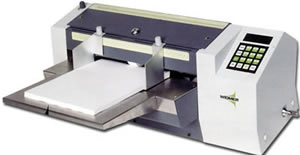

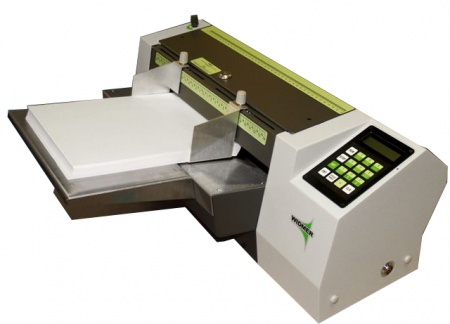

The Widmer RS-B-C depending upon the optional Dies / Plates you add is an all-in-one document and check signer/endorser loaded with helpful features which get your job done quickly and efficiently.

The RS-B-C unit is equipped with a stacker for processing hundreds of documents unattended. The RS-B-C can accommodate documents from 2.875" to 15" wide and 2.875 to 16" long. Up to 9 pre-programmed jobs can be stored for different types documents via the touch control panel.

Security access and unauthorized use is controlled by assigning users unique pin codes from the touch control panel and there is a manual key lock over-ride for complete lockout.

This base model does not include any dies. Users can purchase custom dies to meet their needs.

A signature form will be sent upon purchase to be submitted to the manufacturer. This form will be used to create a customized signature or endorsing plate.

Specifications

Dimensions: 9" x 24-1/2" x 12"

20" extension tray

Weight: 55 lbs.

Shipping Weight: 65 lbs.

Maximum Speed: 12,000/hr (with 3-1/2" check)

Maximum Paper Size: 15-1/2" x 16"

Minimum Paper size: 2-7/8" x 2-7/8"

Power: 120V / 60Hz

Hopper Capacity: 200 Single Ply Optimum/300 Single Ply Maximum

Roller Life: 750,000 Impression (estimated)

Drum Selection: Imprint, Signature, Date.

Extras for RS Series

Single signature and saddle

Extra signature

Border or background

4 lines of text and saddle

Each additional line of text

Logo

Saddle, blank S& O

Saddle, blank D-Date or N-Number

Saddle, blank MN-Number

Saddle, blank DMN-Date and Number

Drum, S & O

Drum, wheels date (D)

Drum, manual set wheel number (MN)

Drum, manual set wheel date and wheel number (DMN)

Ink roller black (Standard)

Ink roller, Red or blue

Ink roller, tri-color

Saddle with "base lock" type segments date or number

Saddle with "base lock" type segments date and number

Double document detector

Shipping Information: Shipping Dimensions: 29 W. x 17 D. x 15 H. Inches. Shipping Weight: 65 lbs.

For Replacement Rollers Click on the Accessories Tab Above.
For Other RS Models Click on the Related Items Tab Above.
