Description

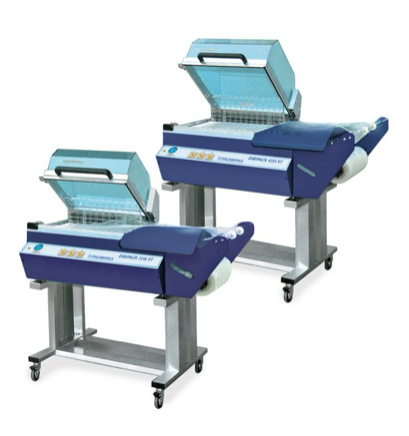

DIBIPACK 4255 STX One Step Shrinkwrap Machine

DIBIPACK 4255 STX One Step Shrinkwrap Machine. A "one step" semi-automatic shrink-wrapper that is simple to use. The operator places the product on the package loading tray in between the two layers of centerfold film. The operator then moves the package into the sealing area and lowers the hood. Once the hood is lowered, the operator applies pressure to make the seal. When the shrink time is completed, the hood will automatically return to the up position and the operator may remove the completed package.

"One-step ® system: simultaneous sealing and shrinking

Two possible working programs: sealing+shrinking and sealing only.

Traditional electronic control panel: sealing time, air temperature and time of hood closing adjustable by hand

Hold-down solenoid (the hood remains closed up to the end of shrinking) and starting control with proximity included

Unit-counter included

Low maintenance

Reduced energy consumption

Reduced overall machine dimensions: it is not necessary a tunnel.

Easily transportable: machine stand equipped with wheels on request

Stand and Scrap-rewind on request

The machine works with thermo-sealing and shrinkable films such as PVC (BLUE FILM) or polyolefin films (GREEN FILM GOLDEN FILM) Machine made according to CE rules.

SPECIFICATIONS

• Power supply :230 V - 1 Ph
• Maximum power required :3 KW
• Overall machine dimensions L x W : 50 x 30.70 INCHES (1270 x 780 mm)
• Working plate height (on stand) : 36.22 INCHES (920 mm)
• Machine weight : 191.80 LBS (87 kg)
• Sealing area W x L : 16.53 x 21.65 INCHES (420 x 550 mm)
• Maximum product height : 7.87 INCHES (200 mm)
• Impulse sealing system : Bottom blade
• Maximum roll dimensions DIA x W : 9.84 x 23.62 INCHES (250 x 600 mm)
• Output : 4 - 6 pcs/min
