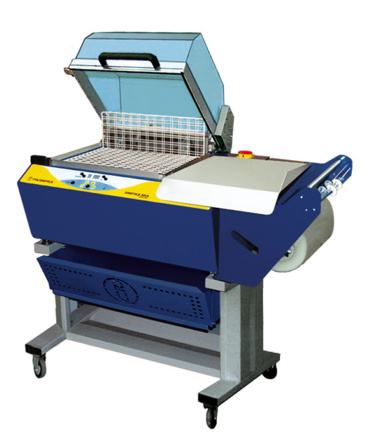

DIBIPACK 4255 EVX One Step Shrink-wrap Machine with multi-function electronic control plate

DIBIPACK 4255 EVX One Step Shrink-wrap Machine with multi-function electronic control plate. A "one step" semi-automatic shrink-wrapper that is simple to use. The operator places the product on the package loading tray in between the two layers of centerfold film. The operator then moves the package into the sealing area and lowers the hood. Once the hood is lowered, the operator applies pressure to make the seal. When the shrink time is completed, the hood will automatically return to the up position and the operator may remove the completed package.

Working Cycle electronically controlled by a microprocessor

It is possible to memorize 8 different working programs

Automatic adjustment of sealing-time: the machine adjusts the sealing-time automatically according to the packaging speed.

Possibility to start shrinking when sealing is completed

Hold-down solenoid included and adjustable: the hood remains closed up to the end of shrinking.

Hood may be released after fan stopping to avoid the escape of hot air at the end of the cycle

Reopening system through gas spring

Starting control with proximity

Price includes Stand and Scrap Rewind

Energy-saving function: the machine goes in stand-by mode if does not work for a record-able period Unit counter included Stand and Scrap-rewind on request The machine works with thermo-sealing and shrinkable films such as PVC (BLUE FILM) or polyolefin films (GREEN FILM/ GOLDEN FILM) Machine made according to CE rules.

SPECIFICATIONS

• Power supply :230 V - 1 Ph
• Maximum power required :3 KW
• Overall machine dimensions L x W : 48.62 x 29.52 INCHES (1235 x 750 mm)
• Working plate height (on stand) : 36.22 INCHES (920 mm)
• Machine weight : 191.80 LBS (87 kg)
• Sealing area W x L : 16.53 x 21.65 INCHES (420 x 550 mm)
• Maximum product height : 7.87 INCHES (200 mm)
• Impulse sealing system : Bottom blade
• Maximum roll dimensions DIA x W : 9.84 x 23.62 INCHES (250 x 600 mm)
• Output : 4 - 6 pcs/min
