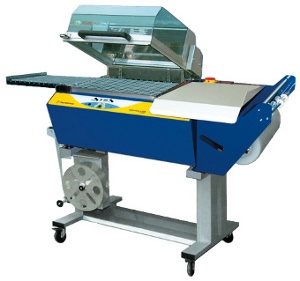

DIBIPACK 4255 SA EV One Step Shrinkwrapper Machine with multi-function electronic control plate and discharge conveyor
Description
DIBIPACK 4255 SA EV One Step Shrinkwrap Machine with multi-function electronic control plate and motorized evacuating belt conveyor system
DIBIPACK 4255 SAS EV One Step Shrinkwrap Machine with multi-function electronic control plate. A "one step" semi-automatic shrink-wrapper that is simple to use. The operator places the product on the package loading tray in between the two layers of centerfold film. The operator then moves the package into the sealing area and lowers the hood. Once the hood is lowered, the operator applies pressure to make the seal. When the shrink time is completed, the hood will automatically return to the up position and the operator may remove the completed package.
SPECIFICATIONS
- Power supply :380 V- 3 Ph
- Maximum power required :5,5 KW
- Overall machine dimensions L x W : 70.86 x 31.49 INCHES (1800 x 800 mm)
- Working plate height (on stand) : 36.22 INCHES (920 mm)
- Machine weight : 264.55 LBS (120 kg)
- Sealing area W x L : 16.53 x 21.65 INCHES (420 x 550 mm)
- Maximum product height : 7.87 INCHES (200 mm)
- Impulse sealing system : Bottom blade
- Maximum roll dimensions DIA x W : 9.84 x 23.62 INCHES (250 x 600 mm)
- Output : 4 - 8 pcs/min
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
Manufacturer Part #: | 4255 EV SA |
Dimensions (LxWxH): | 56.00in. x 28.00in. x 45.00in. |
Origin: | Italy |
