Preferred Pack PP-1519ECMC-SS 220V Manual Stainless Steel Shrinkwrap System

Call Toll Free: 877.336.6877 for Pricing

Availability
Online
In Store
Same Day

Description

Preferred Pack PP1519ECMC-SS 220V Manual Stainless Steel Shrinkwrap System

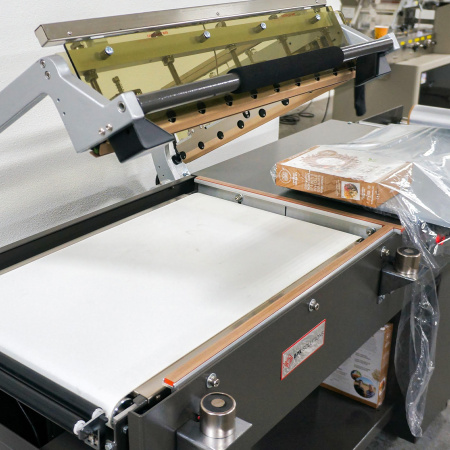

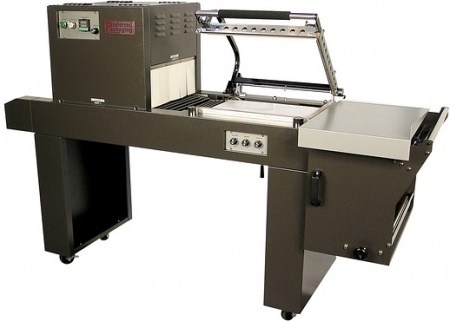

This compact Model PP-1519 ECMC-SS (Stainless Steel) L Sealer with magnetic hold down and power discharge conveyor with attached Tunnel is only 76 inches in total length. Featuring new Micro Knife Technology - Will seal PVC or Polyolefin Shrink Films. Tunnel features Live Roller Rod Conveyor with fully Re-Circulating Air Chamber, AC Variable Speed Conveyor, 0 to 60 FPM, Digital Temperature Control and Automatic Cool Down with Shut off. A great machine for low to medium production speeds of 8 to 12 packages per minute. Available in 110 volts or 220 volts.

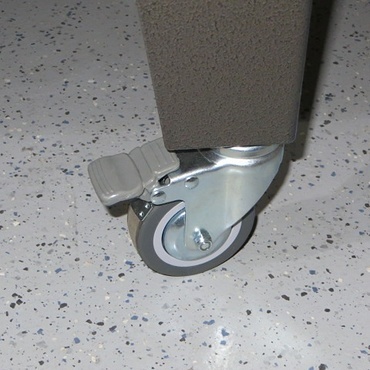

The Preferred Pack 1519ECMC-SS (Stainless Steel) is the top of the line of the Model 1519 series shrink wrap systems. Not only does it include a L-bar sealer and heat tunnel, but includes several nice features that will improve output. These features include a dual magnet hold down and a power discharge conveyor system. These improvements allow the 1519EMC-SS to create up to 10 to 12 packages per minute. This system is great for packaging boxes, baskets, media and much more. The 1519EC (ECONOMY COMBO) is a semi-automatic "L" Sealer machine. "L" sealers require a "shrink tunnel" to complete the shrinkwrap system. It is easily transportable with wheels and the shrinking is time and temperature controlled to ensure optimal results. ECONOMY SERIES: L'Sealer with "Band Seal Technology" (15"W x 19"L) L' Seal area. Comes with Pin Wheel Hole Punch, Legs with casters. Models PP1519L available in a Table Top Version. Add-on tunnels are available in several sizes. Please call for details Order yours today!



Product Details

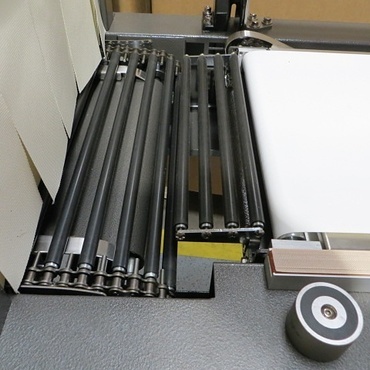

  • Powered discharge conveyor.
  • Dual magnet hold down.
  • Fully re-circulating air chambers.
  • AC variable speed drive, 0-60 feet per minute.
  • Automatic cool down with shut off.

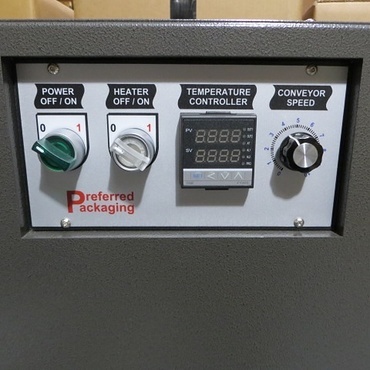

  • Digital temperature control 0 to 400 degrees.
  • Anti-jam safety feature on conveyor.
  • Will seal PVC or Polyolefin shrink film.
  • 1 year warranty on band ribbon.

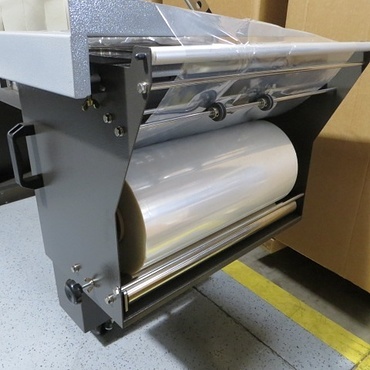

  • Easy load film rack.

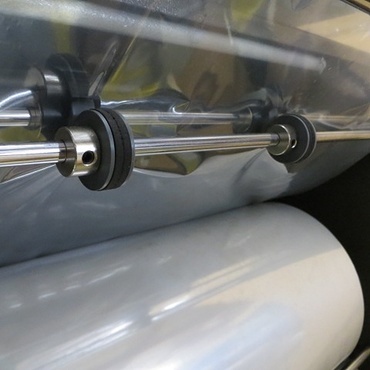

  • Multiple pin wheels provide air evacuation.
  • Adjustable product loading tray.

SPECIFICATIONS

  • Material: Stainless Steel
  • Model: PP1519ECMC
  • Production Speed: 8 to 12 Packages Per Minute
  • Power Supply: 110 V - 15 amps - single phase (220 V version available upon request)
  • Sealing Dimensions: 15" x 19" (381 x 483 mm)
  • Film Dimensions: 22" Max
  • Machine Dimensions: 76" L x 26" W x 50" H
  • Weight: 460 lbs. (Shipping Weight)
  • Warranty: 1 Year Warranty


  • 220V will not have a plug.
  • Electrical:
    • 110 Volt, 1 Phase, 20 Amp (Standard)
    • 220 Volt, 1 phase, 10 amp
  • 110V should be able to plug into wall with 20 AMP breaker.
  • 220V - need electrician to attach both male & female.

  • DEMO VIDEO

    Preferred Packaging Model PP1519ECMC Semi Auto Combo L Bar Sealer and Shrink Tunnel



    If you have any questions or concerns, contact a customer service representative today.
    Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


    Specifications

    Manufacturer Part #: PP1519ECMC
    Dimensions (LxWxH): 76.00in. x 26.00in. x 50.00in.

    SPECIFICATIONS

    • Material: Stainless Steel
    • Model: PP1519ECMC
    • Production Speed: 8 to 12 Packages Per Minute
    • Power Supply: 110 V - 15 amps - single phase (220 V version available upon request)
    • Sealing Dimensions: 15" x 19" (381 x 483 mm)
    • Film Dimensions: 22" Max
    • Machine Dimensions: 76" L x 26" W x 50" H
    • Weight: 460 lbs. (Shipping Weight)
    • Warranty: 1 Year Warranty
