Preferred Pack PP-30 Steam Generators for Steam Tunnels
Description
Preferred Pack PP-30 Steam Generators for Steam Tunnels

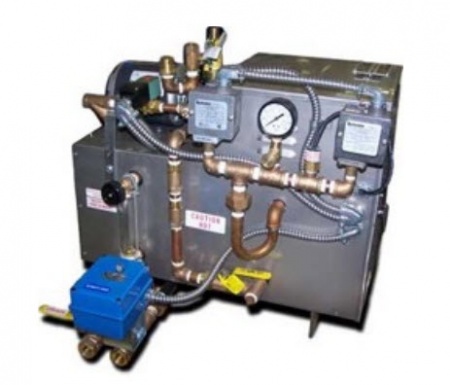

This steam generator design consists of a high-pressure chamber filled with water that is heated by submerged electric heaters. Automatic controls are provided to maintain the pre-set operating pressure and water level. Safety features include automatic low water cutoff, dual pressure controls, a safety valve, and a visible water level gauge.
SPECIFICATIONS
- Main wall power: 220V, 50/60Hz, 3 Ph
- Dimensions: 26inch L x 19inch W x 23inch H
- Shipping Information: Shipping Dimensions are: 63 x 39 x 54 Inches. The Shipping Weight is 400 lbs.
- Steam Inlet & Outlet: 1/2inch
- Weight: 200 lbs. (91 kg)
- Steam Inlet & Outlet: 1/2inch
- KW: 30
- Amps:84
- Phase:3
- BHP:3
- Steam Capacity Lb/Hr at 212F:103.5
- Gross BTU:100,400
The steam generators are an integrated system, National board of PVI inspected, ASME Coded, UL Listed, Canadian UL Listed. It is the responsibility of the customer to conform to any state or local codes.
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | PP-30 30kw3HP |
| Dimensions (LxWxH): | 26.00in. x 19.00in. x 23.00in. |
