Description

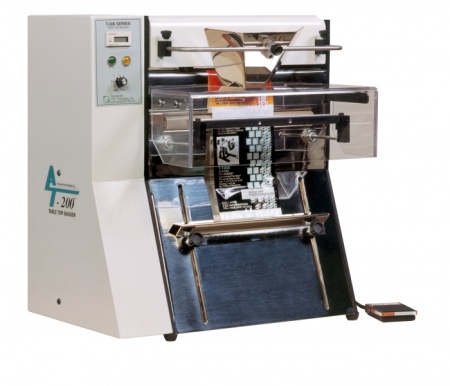

Bag Sealers | T-200 Manual Tabletop Bagger

Throw away your hand sealer and double your production or more! With the T-200 tabletop bagger-sealer, you will increase production, simplify the bagging operation and decrease packaging costs.

Package fasteners, electronic components, literature, manuals, various foods, jewelry, craft items and much more. By using Excel's pre-opened bags on rolls instead of loose bags all you have to do is simply pull the bag into the loading and sealing position, blow the bags open, insert the product into the bag and press the foot-switch or guard-switch (guard tilts downward cycling the bagger) to seal the bag. It's just that simple.

FEATURES

• Heat/dwell and cool LED's indicate cycle operation of sealing mechanism
• Patented Teflon Shield increases Teflon life by 10 times; Teflon is only in contact with the heating element while sealing and the element stays clean and delivers a long service life
• Tilting guard or guard-switch assembly cycle machine at the loading area, maximizing output and minimizing operator fatigue
• Patented anti-jamming method ensures no attempts were made to seal obstructions in the seal area, especially fingers
• Universal funnel attachment is standard allowing the operator to slide the product directly into the bag
• Adjustable volume air knife filters a continuous stream of clean air with a 4-micron filter
• Adjustable load shelf supports the bag and also assists the operator to position the bag at the proper seal point
• Quick roll change assembly and easy threading allows operators to replace the roll of bags in less than a minute

SPECIFICATIONS

• Bag Feed Method: Manual Registration
• Seal Mechanism: Solid Heater Bar
• Cycle Operation: Semi-Automatic
• Bag Size Range: 2inch x 2inch up to 11inch x 16inch
• Film Thickness: 1 to 5 mil
• Estimated Speed: 5 to 15 bags/minute
• Guard-Switch Feature: Standard
• Anti-Jam Seal Bar: Standard Safety Feature
• Electric: 110V/60Hz
• Air: Minimum .5cfm/40psi | Recommended 50psi and at least 5 HP. Air Compressor is not included.
Ensure that sufficient AIR and ELECTRIC is provided as follows: Air: Must be clean, dry and oil-free with 3/8” incoming airline with quick disconnect CFM Requirements: Tabletop baggers – 4 CFM T-1000 - 8 CFM Printers – 2 CFM UC-2400 – 3 CFM US-3000 through 9000 - 3 CFM
If Shop Air is not available, then a Minimum Air Compressor rating to run a Basic machine is 5 HP 220 Volt 80 Gallon tank with an oil lubricated pump for longevity. It is recommended that you install a water filter that mounts on the output side of the compressor to capture water prior to entering the air line from compressor to machine.
Air Pressure: 100 PSI recommended. Equipment will have separate regulators

• Dimensions: 19.5inch x 16inch x 21.5inch
• Weight: 50lbs
• Shipping: Ships by Freight Carrier
• Shipping Info (On a Pallet for LTL): Crated Weight: 128 lbs. Crated Dimensions: 45 x 33 x 33 Class: 125

Options / Accessories

• Foam Compression Pad for Air Minimization
• Customer Partition Table (Sits Above Bagger to Hold Parts for Kit Packaging)
• Tabletop Bagger Cart (Includes Extra Roll Hangers, Work Shelf, and Storage Shelves)
• Custom Electrical
