Description

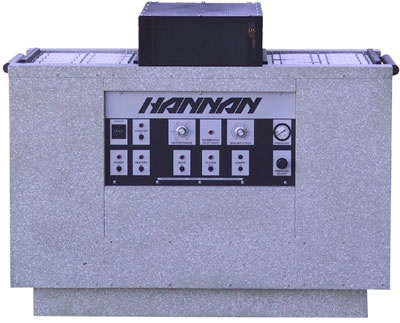

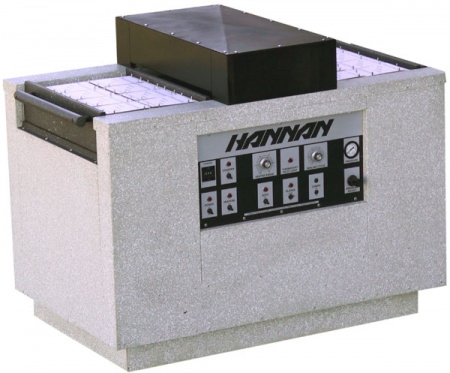

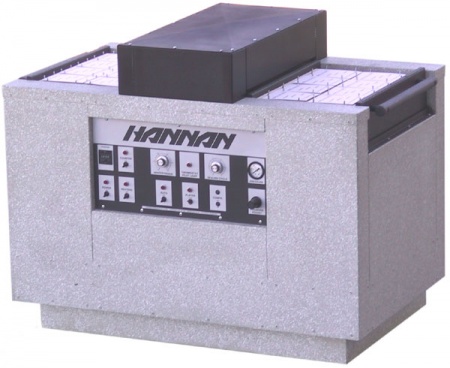

Blister Sealers | Preferred Pack 511 S SERIES Blister Sealer - (12inch x 18inch)
The Perfect Blend of Sophistication and Simplicity
The 511 S has been engineered for reliability, high productivity, and efficient use of space and energy. This Machine has everything needed to produce the highest quality package at the fastest possible rate, ranging from display to medical applications. With Hannan’s unique independent two station shuttle system, the 511 S is ideally suited for long or short run production. The balanced heat platen, automatic thermostat, and self-aligning pressure system assure the proper sealing of materials every time.
Hannan equipment is designed to withstand rugged, continuous production use with a minimum of maintenance and operator skill. From the steel construction to the heavy duty industrial finish, the 511 S is “The Professional’s Choiceâ€.
Examples Of Out standing Standard Feat ures Include
1. Immediate fixture change over (no bolting or fastening into place)
2. Stationary heat platen (eliminates thermostat probe breakdown common to moving platen sealers)
3. Fully enclosed sealing chamber (for safer operation)
4. Production monitor (push button reset)
General Specifications:
- Max. blister (tray) depth: 4inch
- Min. air requirement: 30 p.s.i.
- Working height: 32inch
- Overall height: 40.5inch
- Electrical: 220 VAC 1ph 60 hz
- Max. sealing pressure: 3 Tons 6,000 lbs
Specifications 511S - 12inch x 18inch :
- Maximum sealing size: 12inch x 18inch
- Tooling size: 13.5inch x 19.5inch
- Temp. contro: 100-600 F
- Overall width: 30inch
- Overall length: 48inch
- Shipping weight: 750 lbs
Specifications 511S - 18inch x 24inch :
- Maximum sealing size: 18inch x 24inch
- Tooling size: 19.5inch x 27inch
- Temp. contro: 100-600 F
- Overall width: 36inch
- Overall length: 66inch
- Shipping weight: 1200 lbs
OPTIONS :
- 220V 3 PH
- 440V 3PH
- INTERNAL COMPRESSOR
- WHITE HARD COAT FINISH
Operating sequence:
Sealing operations may be independently performed from either side of the machine1. Place materials into sealing fixture
2. Slide fixture into sealing chamber (Opposite fixture may be loaded.)
3. When fixture is completely inside sealing chamber, heat pressure cycle automatically seals materials.
4. Slide fixture out of sealing chamber.
5. Remove packaged units from fixture and reload materials for next cycle.
