Carton Erectors | Preferred Pack PP-568 ERT Large Case Erector (13.7-23.6inches L x 11.8-17.7inches W x 9.8-20inches H)

Call Toll Free: 877.336.6877 for Pricing

Availability
Online
In Store
Same Day

Description

Carton Erectors | Preferred Pack PP-568 ERT Large Case Erector (13.7-23.6inches L x 11.8-17.7inches W x 9.8-20inches H)



Once your volume of cases increases it is time to stop hand erecting and taping your boxes.


Our PP-568 ERT Series can erect and tape the bottom of your boxes at up to 12 cases per minute.


FEATURES


ERT: Carton Erector - Vertical Style
  • L: Large size
  • For all general type of corrugated boxes

Mechanical Aspect:
  • Vertical seal
  • Belt driven with universal bearing
  • Double suction arm
  • Aluminum frame and acrylic safety fence
  • Easy maintenance

SPECIFICATIONS

  • Power Supply 3 Phase, 220/380/415/440V
  • Air supply 6kgf/cm (137.64L/min.)
  • Tape Head C-1
  • OPP 2inches/3inches (Please advise when ordering)
  • Sealing Size:(LxWxH) 2inchesOPP:250~510 x 200~380 x 120~500 / 3inchesOPP: 250~510 x 225~380 x 120~500
  • Tape Overlap: 2inches OPP: 60±5 / 3inches OPP: 40±5
  • Working Table Height:25inches
  • Capacity 9~12 boxes/min.
  • Net Weight: 1808 lbs
  • Machine Size:(LxWxH) 99inches x 93inches x 61inches

OPTION


Mechatronic Aspect:
  • HMI touch panel
  • Detection for failed box folding
  • Detection for low boxes
  • PLC system

Mechanical Aspect:
  • Right Hand or Left Hand performance
  • Safety Fence: aluminum frame with acrylic window panel

System Aspects:
  • Combine with case strapper to secure your package even more.

Special Needs:
  • Stainless steel structure SUS# 304

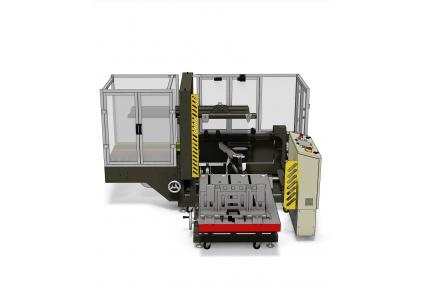

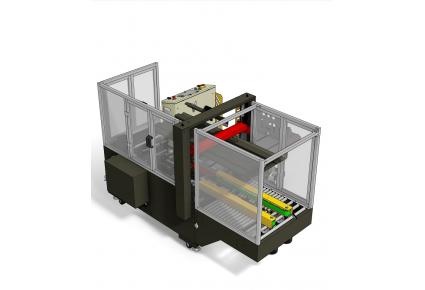

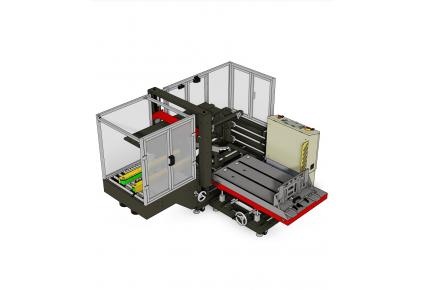

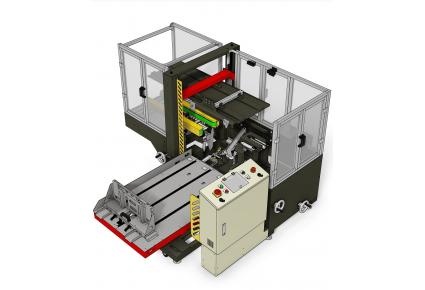

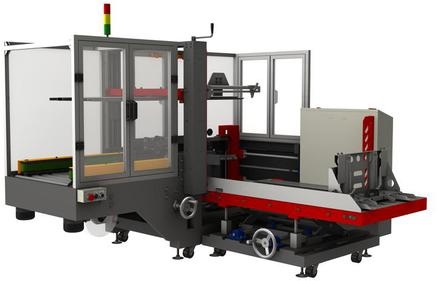

Preferred Pack PP-568 ERT Case Erector



If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com



Specifications

Dimensions (LxWxH): 99.00in. x 93.00in. x 61.00in.

SPECIFICATIONS

  • Power Supply 3 Phase, 220/380/415/440V
  • Air supply 6kgf/cm (137.64L/min.)
  • Tape Head C-1
  • OPP 2inches/3inches (Please advise when ordering)
  • Sealing Size:(LxWxH) 2inchesOPP:250~510 x 200~380 x 120~500 / 3inchesOPP: 250~510 x 225~380 x 120~500
  • Tape Overlap: 2inches OPP: 60±5 / 3inches OPP: 40±5
  • Working Table Height:25inches
  • Capacity 9~12 boxes/min.
  • Net Weight: 1808 lbs
  • 28924.6
  • Machine Size:(LxWxH) 99inches x 93inches x 61inches
