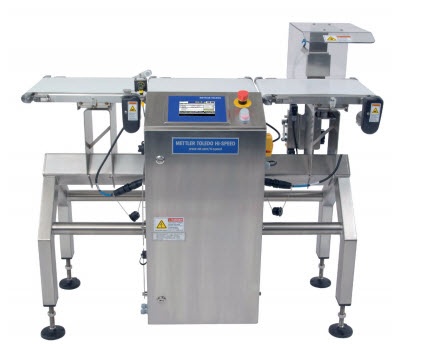

Checkweighers | Preferred Pack Beltweigh XC (3 Belt) Checkweigher (Mettler Toledo)

The Beltweigh XC products provide a level of capabilities that are suited for users that are introducing product inspection to their production processes and those who are already employing checkweighing and metal detection and looking to increase capacity with an economical solution.

The 2-belt Beltweigh XC is compact and requires only 23” (570 mm) of valuable line space, making it ideal for existing production lines where space is a premium. The integrated XC control is mounted to the front of the system, with a low-profile user interface. This means the operator does not reach across the conveyor – keeping the operator and your products safer – maintenance can be performed from one side of the machine.

Constructed on an all-welded, stainless steel frame the Beltweigh XC is rugged and ready for food and other wet applications. Materials and finish are selected for environments where regular cleaning is a must. The welded frame means only four points of contact to the floor for ease of installation and inspection. The open design gives maintenance personnel clear access to the area below the machine – making cleanup fast and effective.

You recognize Hi-Speed as a name that represents durable products. We value our reputation and lower cost does not mean lower quality. All components are protected for a food environment. Sub-component assemblies and construction methods chosen for the Beltweigh XC are proven with years or experience in food and industrial environments.

The XC Control is easy to learn and operate. The intuitive color touch-screen user interface guides the operator quickly through product set-up and changeovers to optimize uptime, and simplify training. Password protected access for Operators and Supervisors means ensured security and integrity of your product and process.

• Lockout - Tagout for power and pneumatics
• E-stops with air dumps
• Low voltage motors
• Shield-guards over rejectors
• ANSI B155 Compliant

• Three machine widths
• Two or three belt systems
• With or without an integrated metal detector
• Rejector solutions to fit your products
• Caster base option for portability
• Nine metal detector aperture sizes accommodate most package sizes

• Product changeover that takes seconds
• Cleaning and sanitation without tools
• Maintenance of change parts in ten minutes or less
• Proven assemblies for a food and other washdown environments
• Installation with a single power drop, and four points of support to the floor
• Operators trained to create new products in minutes
• Metal detector sorting controlled through the checkweigher control

The Safeline Compact metal detector is an effective and economical inspection solution for dry to moderate wash down environments. Incorporating Mettler-Toledo Safeline patented zero-metal-free-zone (ZMFZ) technology, detectors can be installed in the smallest of spaces to minimize overall line length. The demands of regulatory bodies and customers are met by the delivery of excellent performance with high sensitivity for the detection of ferrous, non-ferrous and stainless steel contaminants. No-tools

Chose to use the Beltweigh XC as a simple policeman checkweigher, or collect and transfer data for production records. A weight-data interface can be provided through RS 232, or Ethernet TCP/IP. Our Print-Stick option enables you to transfer data from the checkweigher to a personal computer or network conveniently using a simple USB memory stick.

In addition to the inherent safety of the XC controls low-profile design, it also provides a clear line of sight, delivering better visibility to your production and process. The machine is sloped and flat surfaces are minimized to reduce accumulation, and facilitate fall-through. Access to the floor is unobstructed with generous clearance under cross-members and the control for inspection and cleaning.

SPECIFICATIONS
