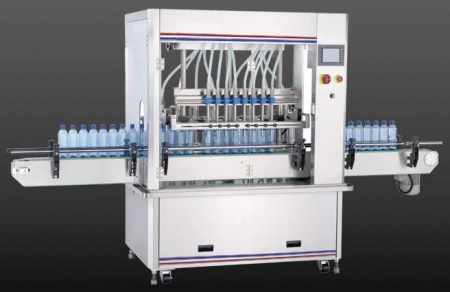

Filling and Capping Machines | Preferred Pack FL-101 Volumetric Liquid Filling Machine (servo system)



The FL-101 Volumetric filling machine is widely used for food, pharmaceutical, chemical, cosmetics and various industries. The personalized control panel system provides users an easy operation and an effective management result by production monitoring on the PLC. This machine has an adjustable speed while filling. It can fill slowly at the beginning and then accelerate to faster speed, finally slow down once again to finish up. This can prevent foamy liquids from bubbling and avoid spillage. The Nozzles can set to be above bottle mouth or bottom up, synchronizing with liquid level (beneath or above) to eliminate bubbling of foamy liquids. In addition, it is Easy to install and operate, it only requires minimum maintenance for maximum performance and a long filler life time.


Characteristics

  • Container type: bottle
  • Operational mode: servo-driven
  • Type: vertical, volumetric
  • Product applications: for liquids
  • Capacity: Min.: 20 cm³ (0.68 fl us oz) / Max.: 1000 cm³ (33.81 fl us oz)

SERVO DRIVE SYSTEM

Pack Leader’s volumetric filling system exclusively uses the delicate servo drive system to control the main filling structure to achieve the high stability and precise positioning

VERTICAL DRIVEN PISTON

The vertical stroke of the filling piston movement adopts with our exclusive servo control system provides not only the long term energy saving result but also effectively create a great result of machine load rate reducing

TOOL-FREE ADJUSTMENT

Tool-free production change when changing the filling volume; by key-in the desire number on the PLC gives users the best time saving result.
The delicate servo control system design can provide choice of above liquid surface filling, underneath liquid filling and bottle neck (opening) filling accordingly with different features of liquids.

HIGH ACCURACY

The delicate servo system precisely control the filling amount with precise piston stoke provides high filling accuracy, intelligent piston is designed with miner adjusting mechanism enable users to adhesive ultimate higher accuracy.

HIGH ADAPABILITY

FL-101 Volumetric filling machine is widely used for food, pharmaceutical, chemical, cosmetics and various industries.
The personalized control panel system provides users an easy operation and an effective management result by production monitoring on the PLC.

FL-101 VOLUMETRIC LIQUID FILLING MACHINE FEATURES

  • Controlled by Panasonic servo system.
  • Controllable and various filling speed.
  • Accurate to ±0.5% ( with drinking water )
  • Integrated digital control with Panasonic PLC and Hi-tech Touch Screen controls for easy operation.
  • Designed for easy change-over and cleaning.
  • Professional manufacturing techniques using ISO-9001 system.
  • Sturdy conveyer system driven by Siemens motor. Adjustable conveyor guide rails to accommodate with different products.
  • GMP standard Stainless Steel.
  • No-dripping sensing system.
  • Bottle holding mechanism for the best position of the bottles before filling action.
  • No bottle-no fill system.
  • Bottle jammed detection.
  • Warning light and buzz alarm to inform operator production error.
  • Filling zone protected by interlock guards for safety registration
  • ABB circuit breaker for the protection when overload.
  • Memory slots for storing filling parameters for future operation
  • Easy to install and operate, it only requires minimum maintenance for maximum performance and a long filler life time.
  • Quick change of volume with digital readout.
  • Delicate filler structure and finish comparable with European machines.
  • Volume set can be changed on the touch screen. Filling pistons are controlled by servo system.
  • Individual piston adjustment for fine tuning.
  • Digital control system to enable multiple filling actions on the same bottle for double, triple and more.
  • Fully automatic rise for nozzles, adjustment can be done on touch screen
  • Nozzles can set to be above bottle mouth or bottom up, synchronizing with liquid level (beneath or above) to eliminate bubbling of foamy liquids.
  • Adjustable speed while filling, it can fill slowly at the beginning and then accelerate to faster speed, finally slow down once again to finish up. This can prevent foamy liquids from bubbling and avoid spillage.

SPECIFICATION

  • Filling Capacity Options: 20-100cc/50-250cc/100-500cc/200-1000cc
  • Liquid Contact Part Material Option: Stainless Steel 304/Stainless Steel 316
  • Supply Voltage: 220/380V, 50-60Hz, 3 Phase
  • Power Consumption: 1.5 kW
  • Air Pressure: 4-6kg
  • Dimension : (L)3000mm X (W)950mm X (H)1770mm
  • Net Weight: 850kg

System Advantages:

  • Quality engineered machine structure and finish comparable to European machines.
  • While changing volume set, all pistons can be controlled by the servo system. Gentle touch on the touch screen can easily change the volume setting; there's no need to adjust the piston one by one mechanically.
  • Digital control system to enable multiple filling processes on the same bottles for double, triple and more filling volume. Servo driven, position adjustable nozzle.
  • Nozzle height can be easily adjusted by touch screen for stable height above bottle mouth or diving to the bottle bottom and then moving up synchronizing with liquid level (beneath or above) to eliminate bubble of foamy product.
  • Adjustable speed while filling process, for example filling slowly at the beginning, then accelerate to fast speed and at the end slow down once again. This filling sequence is the best insurance for foamy product and also to avoid liquid dripping out of the bottle.


If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


Specifications

Dimensions (LxWxH): 118.00in. x 37.00in. x 70.00in.

SPECIFICATION

  • Filling Capacity Options: 20-100cc/50-250cc/100-500cc/200-1000cc
  • Liquid Contact Part Material Option: Stainless Steel 304/Stainless Steel 316
  • Supply Voltage: 220/380V, 50-60Hz, 3 Phase
  • Power Consumption: 1.5 kW
  • Air Pressure: 4-6kg
  • Dimension : (L)3000mm X (W)950mm X (H)1770mm
  • Net Weight: 850kg
