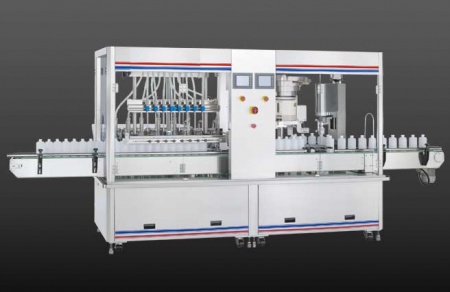

Filling and Capping Machines | Preferred Pack FC-101 Fully Automatic Filler-Capper

FC-101 fully automatic filler-capper minimized the opportunity of adjustment and enable the highest production efficiency which is suitable for pharmaceutical, food and beverage, cosmetics, detergents and petrochemical industries and more. FC-101 is your best choice of filling & capping solution.

Servo driven FC-101 filler-capper is designed for easy operation and quick change over for different products. The machine could adjust based on customer's product specification and requirement.

FC-101 FULLY AUTOMATIC FILLER-CAPPER FEATURES

• Easy to install, simple to operate and require minimum maintenance for maximum performance and long machine lifetime.
• Integrated digital control with PLC and Hitech Touch Screen controls for easy operation. All activities are controlled by high technology Panasonic servo system.
• Protected with safety shield meet strict safety restriction.
• Sturdy conveyer system driven by high quality motor. Adjustable conveyer guide rails to accommodate with different products.
• Anti-dripping design to enable the clean conveyer surface and perfect finished product.
• No bottle-no fill system.
• Bottle jammed detection.
• Positioned by star wheel. It will automatic stop when no bottle or position is not accurately.
• Fully adjustable for different bottle with different star wheel and capping head.
• Adjustable electronic torque values to eliminate damage to caps and reduce insert wear.

SYSTEM ADVANTAGES

• Delicate machine structure and finish comparable to European machines.
• While changing volume set, all pistons can be controlled by the servo system. Gentle touch on the touch screen can easily change the volume set. There's no need to adjust the piston one by one and mechanically.
• Digital control system to enable multiple filling process on the same bottles for double, triple and more filling volume.
• Adjustable speed while filing process, for example filling slowly at the beginning, then accelerate to fast speed and at the end slow down once again which is the best insurance for the foamy product and avoid liquid dripping out from the bottle.

SPECIFICATION

• Filling Capacity Options: 20-100cc/50-250cc/100-500cc/200-1000cc
• Caps types: Aluminum Screw Caps, Plastic Screw Caps
• Supply Voltage: 220/380V, 50-60Hz, 3 Phase
• Power Consumption: 3 kW
• Air Pressure: 4-6kg
• Dimension : (L) 4320mm×(W) 964mm×(H) 1770mm
• Net Weight: 1000kg
