Description

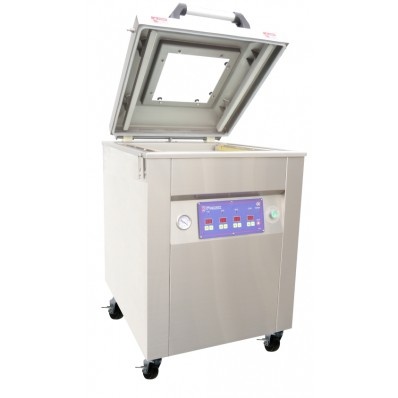

Vacuum Packaging | Excel SC-520LR Single Chamber Vacuum Packaging Machines

The SC series of vacuum chamber machines were designed to fit needs that other machines cannot. Our SC-420LR and 520LR are built with the same compact footprint as the popular TC-420LR and 520LR but offer users the opportunity to move these machines easily, taking them where they are needed on the work floor.

The most valuable benefit of these floor model versions is their increased portability. Equipped with heavy duty casters, these machines can be rolled from room to room without the need for heavy lifting or usable table space. The ideal machines for small processors, retailers, restaurants, and laboratories, these machines can be installed virtually anywhere with a standard 110-volt outlet. Like everything Promarks builds, quality and affordability are carefully balanced in order to appeal to our customers.

All of our chamber machines are constructed of high-quality stainless steel that results in our machines looking better longer. With the option of basic digital or fully programmable controls, you can decide what will best suit your needs. The removable seal bars can be fitted with your choice of a single 6mm wide seal, or you can opt for a thinner seal with hot wire cut-off if a trim look is what you are seeking.

Standard Features:

• Floor Model
• Basic Digital Control Panel
• Stainless Steel Construction
• Clear See-Through Lid
• Bladder Activated Sealing

SPECIFICATIONS

• Chamber Size: 23.6inch x 23.6inch
• Chamber Depth: 7.9inch
• Distance Between Seal Bars: 17.7inch
• Seal Bar Length: 21.3inch
• Vacuum Pump Capacity: 20m3/h (1-1/4hp/0.75kw)
• Voltage: 110V/1PH/60HZ/15A
• Machine Weight: 309 lbs
• Machine Size - L x W x H: 24inch x 30inch x 36inch

Options:

• PNC-01 Microprocessor Control
• Busch RB0021 Vacuum Pump
• Soft Air
• Bi-Active Seal
• Air Assist Sealing
• Gas Flush System
• Twin Beam Sealing
