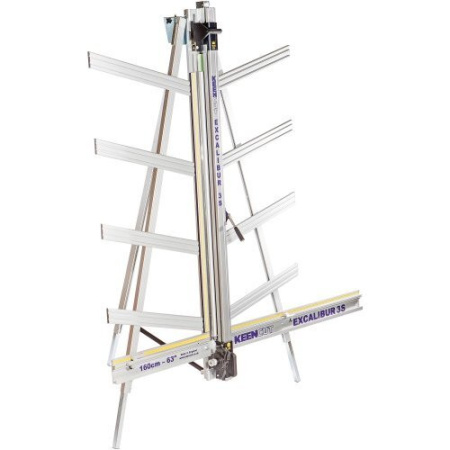

Keencut Excalibur 3S 63 Inches Vertical Multi-Substrate Cutter - EXC3S (Old Part #60373)

Medium-duty board cutter for tough materials

The Keencut Excalibur 3S 63 Inches Vertical Multi-Substrate Cutter provides most of the cutting capabilities of the SteelTrak cutters at an economical price. It is featured with new self-lubricating bearings, included on both cutting heads, that can handle harder substrates such as Aluminum Composite, PVC, foam board, and other rigid substrates used by sign makers. The Keencut Excalibur 3S cuts materials up to 13mm (1/2 Inches ) thick and up to 63 Inches long. Operators can quickly access all 3 cutting tools (composite twin wheel cutting head, standard utility blade, and scoring blade for acrylic) as they are attached to the cutting head. Plus, all the blades of Keencut Excalibur 3S are cut on the same line, leaving no wasted panels and making sure that no mistakes guessing where the cut line is. If you are looking for an affordable and best-value vertical substrate cutter, then the Keencut Excalibur 3S is the perfect match for you.

The Excalibur 3S is a premium cutting machine with exceptional return on investment. It is ideal for those who do not need the heavy production features of the SteelTrak.

The Excalibur 3S is suited to the regular cutting of light and medium-weight boards and can also cut tough materials including 3mm (3/32 Inches) aluminum composite panels.

Simple alignment and permanently mounted blades guarantee a fast and accurate finish. Its unique features will allow you to improve quality, reduce waste, and increase productivity.

Product Details

• Cuts heavy-duty materials easily
• Consistent perfect cuts
• Precision engineered for accuracy
• Includes three tools as standard
• No dust, debris, or static build-up
• Quick payback through reduced waste and cutting time
• Safety by design
• Simple intuitive operation
• Manufactured with premium quality materials
• Guaranteed for 5 years

Features

Perfect cuts

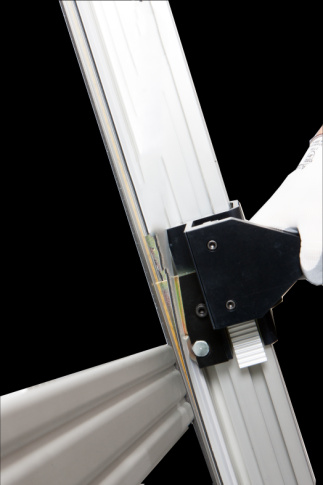

Accuracy is assured with a clear sightline strip acting as your guide to precise alignment. A one-piece horizontal squaring arm ensures positioning and rigidity on either side of the cut line. Once aligned, materials are held firmly by a unique pressure-sensitive clamp, which is designed to protect delicate surfaces from damage.

Safety by design

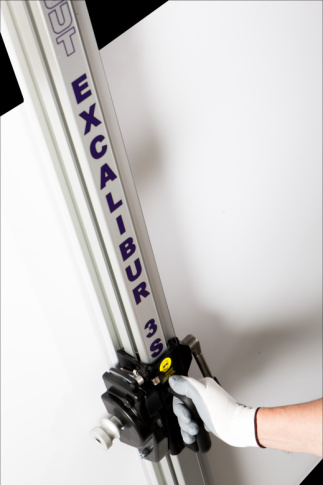

Blades are securely mounted within the cutter head and fitted with a safety lock so all of the blades automatically disengage when not in use. When in operation the Excalibur 3S creates no distracting noise and no dust.

Reduces set-up time

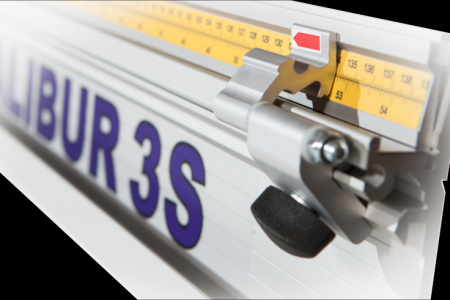

To increase productivity, the Excalibur 3S has been designed for a quick set-up. The cutting and scoring tools are permanently fitted for immediate engagement and the quick set production stops can be adjusted rapidly to provide consistent high production runs or one-off cutting.

Reduces user fatigue

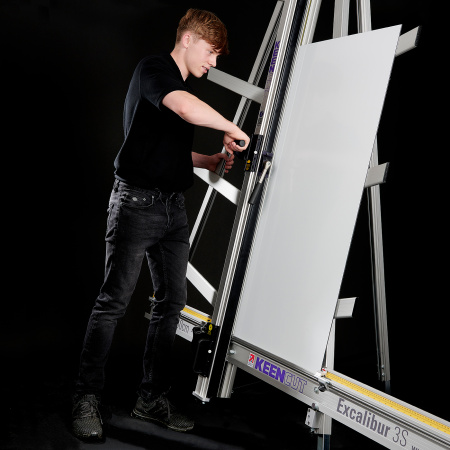

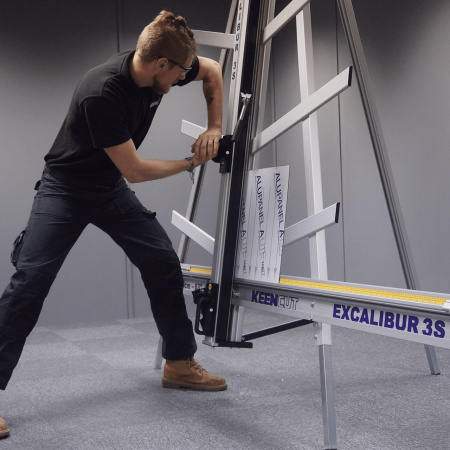

The vertical design utilizes body weight to minimize the effort needed to cut tough materials, there is no need for electric power. The upright cutting position and the low friction bearing system combine to reduce user fatigue, whilst telescopic legs can be fixed at the most comfortable working height.

Space conscious

The option for wall mounting saves workshop space but for those with limited wall space or requiring more flexibility, a free-standing kit is available.

Cost-effective solution

The lower cutter uses off-the-shelf blades, so no costly specialist blades are required. The twin wheel cutters' circular blades are made of high-grade tool steel.

Versatile cutter

The Excalibur 3S will cut a wide variety of materials. The twin wheel cutter will tackle tougher materials including aluminum composite panels, e.g. DiBond and MDF up to 3mm (3/32?), producing a clean, safe edge in a single pass.

Five-year guarantee

By manufacturing in-house, with only the highest quality materials, Keencut can guarantee that the Excalibur 3S will provide reliable long-lasting, and accurate service. All Keencut products are offered with a comprehensive five-year guarantee.

Item Specifications

Materials cut:

• Rigid materials
• Aluminium composite panel, e.g Dibond 3mm (3/32 Inch)
• MDF 3mm (3/32 Inch)
• Cast acrylic / Plexiglas 3mm (3/32 Inch) (scoring only)
• Semi-rigid materials
• PVC foamboard 13mm (1/2 Inch)
• Corrugated/fluted plastic, e.g Correx 13mm (1/2 Inch)
• Corrugated cardboard 13 mm (1/2 Inch)
• Foam centred board 13mm (1/2 Inch)
• Magnetic sheet 4mm (1/8 Inch)

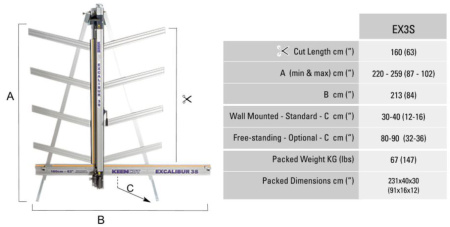

• Dimensions:
• Cut Length cm ("): 160cm (63 Inch)
• A cm ("): 244cm (96 Inch)
• B cm ("): 213cm (84 Inch)
• Wall Mounted - Standard - C cm ("): 30 - 40 (12 - 16)
• Free-standing - Optional - C cm ("): 80 - 90 (32 - 36)
• Packed Weight: 67kg (147lbs)
• Packed Dimensions cm ("): 231 x 40 x 30cm (91 x 16 x 12 Inches)


• Manufacturer's Warranty: Guaranteed for 5 years
• Old Part Number: 60373
• New Part Number: EXC3S

Excalibur Vertical Cutters

Keencut 63 Inch Excalibur 5000 Substrate Cutter - EXC5160 (Old Parts # 60376)

Excalibur Series Accessories

Keencut Freestanding Kit For 65 Inch SteelTrak, Excalibur 1000X, Excalibur 3S And 5000 - FSK160 (Old Part #66002)
Keencut Composite Twin Wheel Cutter Head For Excalibur 5000 And 1000x Cutters (1pk) - EXCOC (Old Part Number: 69125)
Keencut Replacement Sightline Strips - SLS (Old Part # 69117) Pack of 3
Keencut Yellow T Silicone Cord all Cutter Bars (33ft) - SIYLT (Old Part # KX12)

Replacement Blades for Excalibur Series

Keencut Medium Duty Utility Blade (100 Pk) - CA50-019 - (Old Part # 69108)
Keencut Tungsten Carbide Glass Scoring Wheel For SteelTrak & Excalibur Cutters - CA50-015 (Old Part # 69114)
Keencut Replacement Cutting Wheels For Excalibur Cutters (1 Set) - EXCOW (Old Part Number: 69110)

Excalibur 3S Spare Parts

Keencut Excalibur 3S & Excalibur 5000 Counter Balance Service Kit - SE01-014
Keencut Excalibur 3S Head Service Kit - SE08-020
Keencut Excalibur 3S & Excalibur 5000 Ratchet Service Kit - SE01-021
Keencut Excalibur 3S & Excalibur 5000 Squaring Adjuster Kit - SE01-022
Keencut Push Rod & Adjuster Assy(ST165, ST210, EXC5122, EXC5160, EXC3S) - SE31-065

Excalibur 5000 Spare Parts

Keencut Excalibur 5000 Complete Cutting Head Replacement 69115
Keencut Excalibur 3S & Excalibur 5000 Counter Balance Service Kit - SE01-014
Keencut Excalibur 5000 Head Service Kit - SE01-020
Keencut Excalibur 3S & Excalibur 5000 Ratchet Service Kit - SE01-021
Keencut Excalibur 3S & Excalibur 5000 Squaring Adjuster Kit - SE01-022
Keencut Excalibur 5000 Turret Assembly - SX31-004
Keencut SteelTrak & Excalibur LH Squaring Arm Stop Assembly - SE01-010
Keencut SteelTrak & Excalibur RH Squaring Arm Stop Assembly - SE01-011
Keencut SteelTrak & Excalibur Clamp Housing/Handle Assembly - SE01-012
Keencut SteelTrak & Excalibur Pivot Housing Assembly - SS31-013
Keencut Push Rod & Adjuster Assy(ST165, ST210, EXC5122, EXC5160, EXC3S) - SE31-065

In the box

• 100 medium-duty utility blades
• Twin wheel cutter (mounted)
• Spare sightline strip
