Description

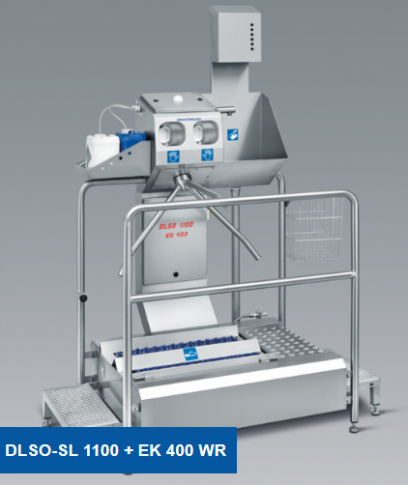

Compact Hygiene Station DLSO-SL + EK 400 WR

The compact hygiene stations of the DLSO-SL + EK 400 WR product line are identical with those of the DLSO-SL + EK 400 in terms of construction, and the only difference is the extra hand washing which is compulsory before the hands can be disinfected in the tamper-proof two hand disinfection.
When the hand wash basin is activated via sensor, soap is sprayed onto the palms through a separate automatic soap dispenser. After this the actual water flow is activated. This guarantees a compulsory and hygienic hand washing with soap.
Included in delivery are a paper towel dispenser HS and a paper towel basket PK-D-35. The machine comes ready for connection. Siphon, joints and gaskets and small parts are not included.
The walk-through sole cleaning machine is available in brush lengths 400, 700, 1100 and 1600 mm.

VARIOUS SIZES AVAILABLE

SPECIFICATIONS

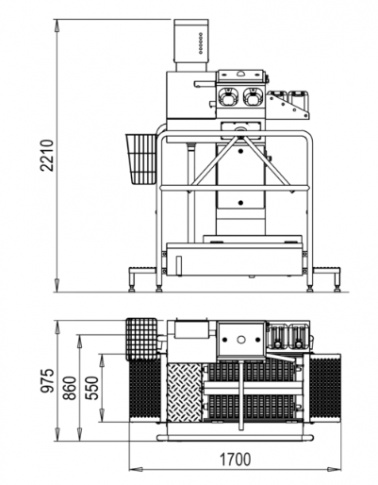

• DLSO-SL 800 + EK 400 WR Dimensions (LxDxH) :1400 x 975 x 2210 mm - Brush length 400mm
• DLSO-SL 1100 + EK 400 WR Dimensions (LxDxH) :1700 x 975 x 2210 mm - Brush length 700mm
• DLSO-SL 2100 + EK 400 WR Dimensions (LxDxH) :2100 x 975 x 2210 mm - Brush length 1100mm
• DLSO-SL 2600+ EK 400 WR Dimensions (LxDxH) :2100 x 975 x 2210 mm - Brush length 1600mm
• Electrical Conection:400 V/N/PE, 50/60 Hz
• Power consumption : 0,6 kW
• Water connection : 3/4" max. 43 °C
• Water outlet : DN 50
