Description

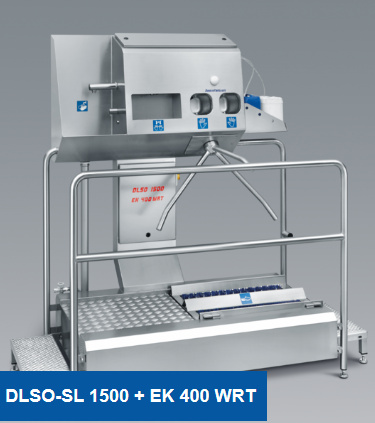

Compact Hygiene Station DLSO-SL + EK 400 WRT

The compact hygiene station of the DLSO-SL + EK 400 WRT line is identical to those of the DLSO-SL + EK 400 in terms of construction and the only difference is that the paper towel dispenser and paper towel basket are replaced by the high-speed hand dryer HANDDRYER 2, which is integrated into the entry control device EK 400.
The integrated method of construction counteracts the possibility of contamination of the surroundings, since the splash water is diverted downwards through grating into the wash basin. The hand drying takes approx.. 10 seconds. A multi-functional LED light simplifies the operation of the unit.
The machine comes ready for connection. Siphon, joints and gaskets and small parts are not included.
The walk-through sole cleaning machine is available in brush length 1100 mm.

SPECIFICATIONS

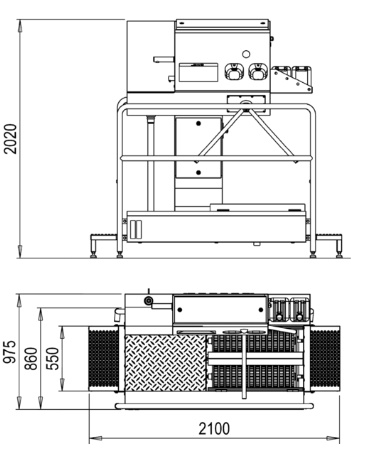

• Dimensions (LxDxH) :2100 x 975 x 400 mm - Brush length 7mm
• Electrical Conection:400 V/N/PE, 50/60 Hz
• Power consumption : 4,0 kW
• Water connection : 3/4" max. 43 °C
• Water outlet : DN 50
