Description

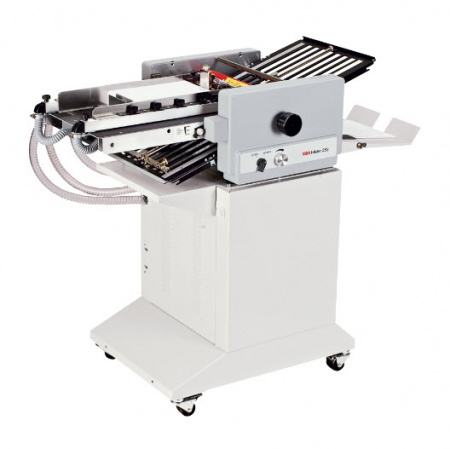

MBM 352S Air Suction Professional Tabletop Paper Folder (FO0625)

High speed, air feed folder ideally suited for high-volume digital production.

Air suction feed system, suitable for coated stocks. Adjusts in seconds for standard and custom folds. Variable speed control. Powered exit conveyor. Bottom-feed, top-loading design for continuous reloading and dependable sheet separation. Polyurethane foam rollers eliminate the need for fold roller pressure settings. Turbine blower fully enclosed for quiet operation. 2 fold plates. Heavy-duty, non-flexing side frames. Needle bearings for high speed production. Mounted on casters. Optional extended delivery system, crossfold for right-angle folding, and slitting, scoring, and perforating attachments.

Features

• Sheet Capacity: 450*
• Paper Size: 3 3/8 x 4 3/4 to 12 5/8 x 17 3/4 Inch (86 x 120 to 320 x 450 mm)
• Paper Weight: 13 to 110 lbs
• Speed: 30,000* per/hr

Product Details

• Electrical Requirements: 115 V. 60 Hz.
• Dimensions (D x W x H): 22 1/4 x 51 3/4 x 43 1/2 Inch (565 x 1314 x 1105 mm)
• Shipping Weight: 312 lbs.

Accessories:

• AC0623: Silencing covers
• AC0630: Slitter
• AC0631: Scorer, narrow
• AC0632: Scorer, medium
• AC0633: Scorer, broad
• AC0646: Extended delivery
• AC0690: Standard perforator, short
• AC0691: Standard perforator, medium
• AC0692: Blade perforator, short
• AC0693: Blade perforator, medium
• AC0694: Blade perforator, long

Characteristics

• High speed, air feed folder ideally suited for high-volume digital production
• Air suction feed system, suitable for coated stocks
• Adjusts in seconds for standard and custom folds
• Variable speed control
• Powered exit conveyor

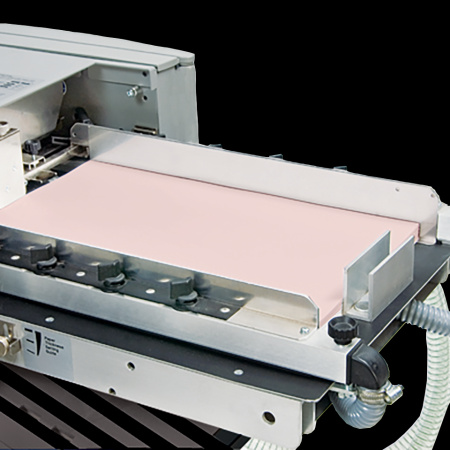

• Bottom-feed, top-loading design for continuous reloading and dependable sheet separation
• Polyurethane foam rollers eliminate the need for fold roller pressure settings

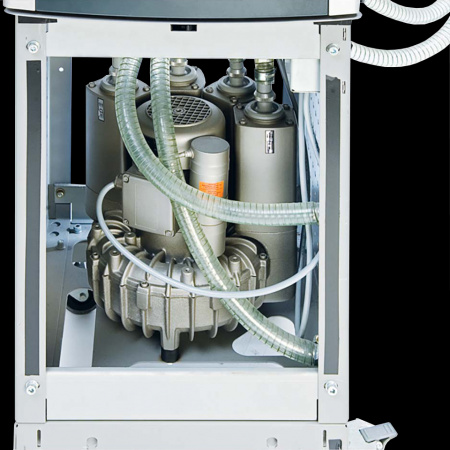

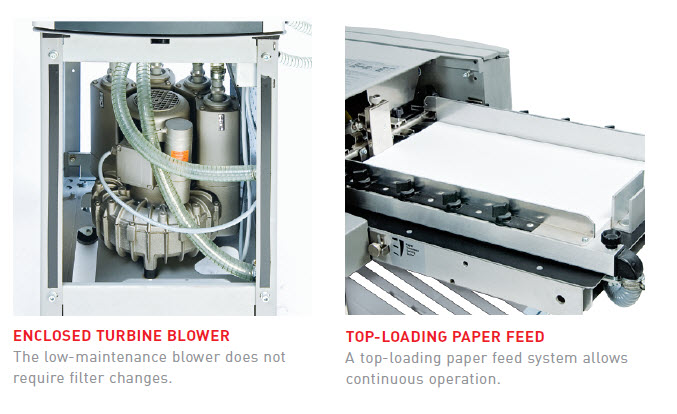

• Turbine blower fully enclosed for quiet operation
• 2 fold plates
• Heavy-duty, non-flexing side frames
• Needle bearings for high-speed production
• Mounted on casters
• Optional extended delivery system, crossfold for right-angle folding, and slitting, scoring, and perforating attachments available
• UL and C UL approved

Warranty

• 1-year limited warranty, excluding wearables
