Phoenix 440-ML 44 Inch Wide Format Mounting Laminator
Description

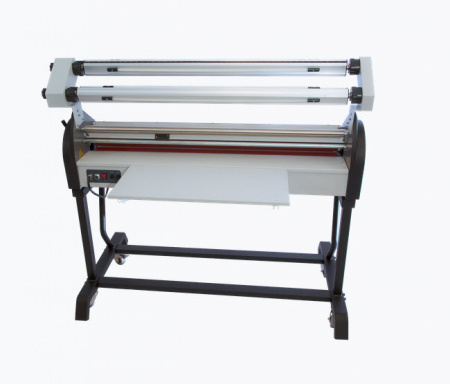

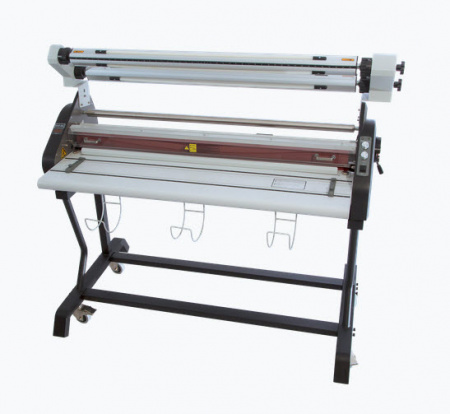

Phoenix 440-ML Mounting Laminator
The Phoenix 440-ML Mounting Laminator was designed to be a flexiable and economical resource for producung signage and display material. The top heated roller allows for thermal product applications while the release line rewind makes it possible to easily work with pressre sensitive materials.
FEATURES
- Five Roller Gap Settings
- Variable Speed Control
- Variable Temperature Control
- Quick-Grip Film Shafts
- Single Knob Tension Control
- Fold Down Rear Exit Tray
- Chain Driven Rewind
- Print Roll Hangers
- Print Feed Guides
- Print Hold Down Clamp
- Emergency Stop Button
- Photoelectric Eye for Safety
- Sleep & Auto-Off Energy Saver
- Stand with Locking Casters
APPLICATIONS
- Signs
- Posters
- POP Displays
- Trade Show Displays
- Single-sided Lamination
- Mount Graphics
- Mount Photos
- Window Graphics
- Pre-Mask
- Mounting Boards
- Pouch Boards
- PSA Film
SPECIFICATIONS
- Maximum Width : 44 Inch
- Roller Diameter : 3.5 Inch
- Adjustable Speed : 0 - 5 feet per minute
- Temperature Range : 100° - 302° F
- Heating Method : Quartz heater
- Film Weights : 1.5 - 5 mil
- Gap / Pressure Settings : 0 , 1/16 , 1/8 , 3/16 & 1/4 Inch
- Supply Unwind / Rewind : Quick-Grip Top
- Auto Stand By : 3 hours idle, drop to 176° F
- Auto Sleep Function : 4 hours idle, turns heat off
- Tension Adjustment : Single Knob
- Power Supply : 120v 12A
- Power Consumption : 1440 W
- Foot Pedal / Stand : Included with unit
- Dimensions, w/ Rear Deck Up : 57 L x 37.75 D x 50 H Inch
- Shipping Dimensions : 59.25 L x 35.5 W x 26.75 H Inch
- Net / Shipping Weight : 264 lbs. / 395 lbs.
- Warranty : 1-yr parts / 3 mos. labor & rollers
DEMO VIDEO
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | 440-ML |
| Dimensions (LxWxH): | 57.00in. x 38.00in. x 50.00in. |
SPECIFICATIONS
| |
