Description

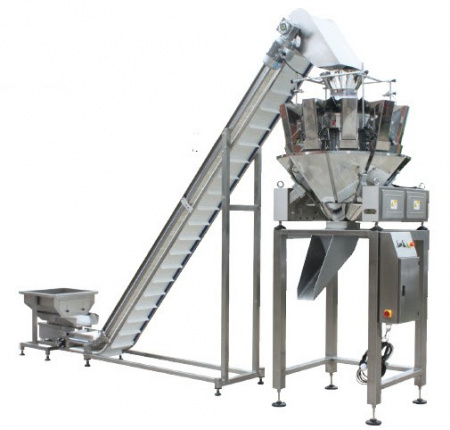

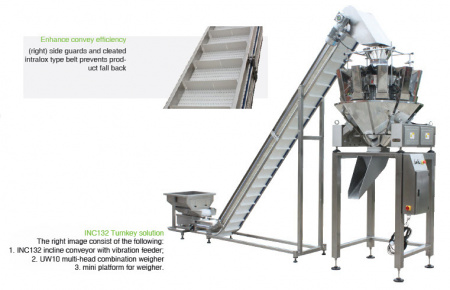

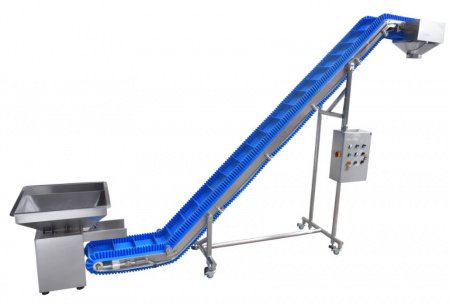

Conveyor | Preferred Pack Model # INC-132-PVC -144 Bucket Feeding Conveyor

The INC132 is an incline conveyor fitted with a vibration feeder. It is suitable for conveying chocolates, confectionary, noodles, frozen meats and other solid products; with its cleated incline belt structure.

The built-to-order INC132, allows user to specify their in-feed and discharge requirements, with seamless integration to upstream and/or downstream equipment.

Both the conveying capacity and feeder speed can be adjusted independently to maximise performance.

Its open structure simplifies cleaning effort compare to the bucket elevator.

Robust and versatile, the INC132 conveys your products in haste.

Advantages

• Adjustment feet and shaft are made of stainless steel 304 grade material
• Cleated intralox type belt
• Completely eliminate tensioning adjustment
• Electrical compartment inverter conveying speed control
• Sanitary design
• Single discharge chute
• Vibration feeder with 60 litres hopper

Options

• Optional belt materials
• Vibration feeder with 120 litres hopper
• Wash down structure
• Special voltage

SPECIFICATIONS

• Conveying capacity : <5 CBM/Hr
• Conveying Height : 144 Inch (12 ft) (3657.6mm)
• Conveyor Width : 9 Inch (228.6mm)
• Conveyor Height : 3.8 M
• Hopper Capacity : 121 L (32 gal)
• Machine Weight kg : > 100 (>220 LBS)
• Machine Dimensions mm : L 3100 x W 650 x H built-to-order (L122 x W25 x H built-to-order Inch)
• Power kW : 0.75
• Voltage : 220 volt, 1 Phase, 50/60 Hz

DEMO VIDEO

Preferred Pack INC 132 PVC with PPs 6 (3.5 inch opening Funnel)


Running Fig Balls on he PPS-4 Weigh Sale and a INC-132PVC Conveyor
