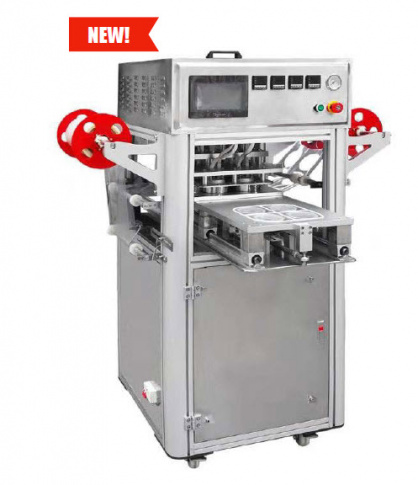

Tray Sealers | TS-Pro Series Model TS-Pro-1 Shuttle Type Tray Sealing Machines
Description
Tray Sealers | TS-Pro Series Model TS-Pro-1 Shuttle Type Tray Sealing Machines
Free standing machines with an enclosed cabinet for convenient storage of film rolls, excess tooling or other misc items and can be used for sealing heat sensitive film to preformed trays or containers for a tamper evident stay-fresh seal, it will seal and “Die Cut” the film around the container.
FEATURES
- #304 Stainless Steel Frame and aluminum construction
- 7 Inch Omron color touch screen HMI
- Omron PLC
- Auto diagnostics with on screen error display for easy troubleshooting
- Digital temperature controls
- Pneumatic Sealing with die cuts around the tray
- Suitable for PP, PE, PET, PVC, Card Board or Foil trays
- Adjustable sealing timer
- Automatic counter
- Warm up time of only 5 minutes Will run either APET or CPET trays
- Fast cycle time of up to 10 cycles per minute
- Automatic film indexing
- Includes one set of tooling with machine
- Manual or Automatic modes
- Consistent leak proof seals
- Film tensioner provides a wrinkle free seal
- Fast and easy tooling changeover for different tray sizes in 5 minutes
- Safe-Automatic shut off to prevent injury if safety guard activated
- Locking Casters
- Photo-eye for printed film
SPECIFICATIONS
- Cavities : 1
- Max Tray Size : 15.75 x 11 Inch
- Power : 1.0 kW
- Air : 60 psi
- Voltage : 220V - 1 Phase
- Machine Dimensions : 40 W x 40 D x 63 H Inch
- Weight : 330 lbs
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | TS-Pro-1 |
| Dimensions (LxWxH): | 40.00in. x 40.00in. x 63.00in. |
SPECIFICATIONS
| |
