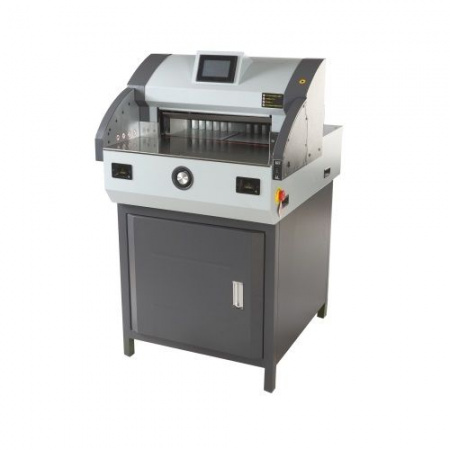

Tamerica TPI-4900E 19.29 Inch Programmable Paper Stack Cutter
Description
Tamerica TPI-4900E 19.29 Inch Programmable Paper Stack Cutter
The Tamerica TPI-4900E is a 19.29 Inch programmable paper stack cutter with a cutting capacity of up to 700 sheets or 3.14 Inch thick. It is featured with a 5 Inch touch screen for ease of use, and a programmable memory that holds up to 100 jobs with 96 settings each. Other great features include micro glide back gauge, back gauge control knob, optical cut line, and safety sensors/emergency stop knob, This Tamerica TPI-4900E 19.29 Inch Programmable Paper Stack Cutter is backed by a 1-year warranty.
FEATURES
- Programmability: 100 programs x 96 settings
- Micro Glide Back Gauge
- 5 Inch Touch Screen
- Back Gauge Control Knob
- Optical Cut Line
- Safety sensors/ Emergency stop knob
- CE Approved
- 1 Year Warranty
SPECIFICATIONS
- Max Cutting Length : 490 mm / 19.5 Inch
- Min Cutting Length : 30 mm / 1.18 Inch
- Max Cutting Capacity : 3.14 Inch (700 sheets)
- Cutting Thickness : 80 mm / 3.15 Inch
- Cutting Precision : ±0.2 mm / .008 Inch
- Display : 5 Inch touch screen
- Machine Weight : 190 kgs (419 lbs.)
- Dimensions : 42 x 39 x 36 Inch
- Lead Rod : Ball Screw + Double Lead Rod
- Motor : One intergrated motor (400W)
- Feed in table : Stainless steel
- Other : Fine turing Knob; Single pressure switch
- Shipping Information: Shipping dimensions: 48 x 42 x 45 inches. Shipping Weight: 475 lbs. Shipping ClassL 175
- Warranty : 1 Year
CUTTING STACK SPECIFICATIONS
- Dimensions : 19-1/2 x 9/16 x 9/16 Inches (495.3 x 14.2875 x 14.2875 mm)
- Weight : 0.3 lbs
BLADE SPECIFICATIONS
- Dimensions : 22 x ¼ x 2-3/16 Inches (559 x ¼ inch x 50.8 mm)
- Weight : 3.0 lbs.
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
Manufacturer Part #: | TPI-4900E |
Dimensions (LxWxH): | 42.00in. x 39.00in. x 36.00in. |
