Description

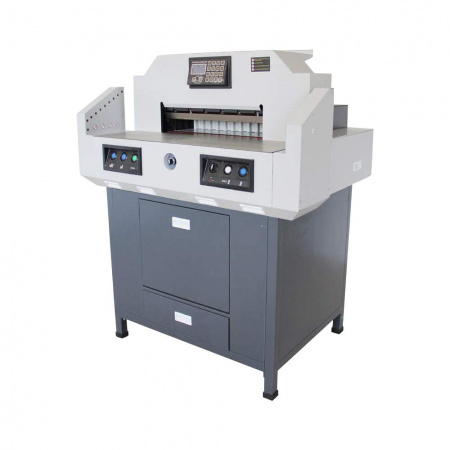

Automatic Electric Paper Cutter (5206PX) Max Cutting Width 520 mm

Electric paper cutters are mainly used for cutting paper in order before a lot of document binding finished. They are extensively applied in modern digital quick print, school offices, libraries, national official business institutions, small and medium-sized printing shops, etc.

This programmable paper cutter offers precise cutting with an electro-mechanical blade drive, automatic paper pushing and automatic paper clamping. For safety, the machine is equipped with several infrared sensors that detect anything, other than the media being cut, and would stop the operation of the machine thereby eradicating the need for a safety ship

FEATURES

• Max Cutting Thickness: 60 mm / 2-3/8 Inch
• Max Cutting Depth: 520 mm / 20-1/2 Inch
• Min Cutting Depth: 40 mm / 1-1/2 Inch
• Cutting Accuracy: ±0.3 mm
• Cutting/Clamping Style: Automatic
• Program Memory: 100 program x 7step
• Voltage: 110V±10%, 60HZ

SPECIFICATIONS

• Cutting width(mm/inch) : 520 mm / 20-1/2 Inch
• Cutting depth(mm/inch) : 520 mm / 20-1/2 Inch
• Narrow Cutting depth(mm/inch) : 40 mm / 1-1/2 Inch
• Cutting height(mm/inch) : 60 mm / 2-3/8 Inch
• of front table(mm/inch) : 240 mm / 9-1/2 Inch
• Cutting precision(mm) : ±0.3 mm
• Mode of clamp : Auto
• Mode of Cutting : Auto
• Mode of pushing : Auto
• Display : LCD
• Supply : AC 110V ±10%(60HZ)
• Power : 1.8kw
• Net weight(kg/lb) : 260 kg / 573lb
• Gross weight(kg/lb) : 285 kg / 628 lb
• Overall dimension(mm/inch) : 970 x 1100 x 1320 mm / 38-1/4 x 43-1/4 x 52 Inch
• Package dimension(mm/inch) : 1160 x 1300 x 870 mm / 45-5/8 x 51-1/4 x 34-1/4 Inch

If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com
