Rapiscan ORION 918CX X-Ray System

The new 918CX is a high performance, compact and versatile 540mm by 357mm tunnel X-Ray system with exceptional image quality and excellent threat detection alert capabilities.

  • INDUSTRY BEST RESOLUTION & MATERIAL DISCRIMINATION
  • EXPLOSIVES & NARCOTICS DETECTION
  • LOW DENSITY IMAGE ENHANCEMENT
  • MATRIXING, NETWORKING & REMOTE VIEWING
  • KEY FEATURES AND OPTIONS

    • Explosive threats, narcotics & density alerts
    • Spectrum 4
    • 17 Image processing functions
    • SINGERY low density enhancement
    • Dual Mode Z-effective
    • CrystalClear
    • Automatic, Enhanced Image Archiving
    • E.U. Approved Threat Image Projection
    • Remote Status Monitoring
    • Remote Archive Review
    • Multi?System Alarm Resolution Network
    • 13 Languages
    • 64-bit Operating System

    SPECTRUM 4-COLOR IMAGING

    918CX now can exhibit images in the Classic 4-color and the new proprietary Spectrum 4-color (SP4) option providing superior image, allowing improved security by quick and accurate identification of threats and increase in throughput. The SP4 complies with global regulatory requirements and allows the exhibition of 16 million colors for superior image definition.

    DUAL MODE ZEFF

    This feature helps operators identify organics accurately and quickly either in Range Mode which highlights the areas based on selected Z-effective numbers of 7, 8 or 9 by the operator, or in Interactive Mode which gives the operator the option to display the Z-effective number in all the areas of the scanned item based on the value of the pixel. Orion™ family are the only systems in industry that can perform Range Mode and Interactive Mode simultaneously.

    EXPLOSIVES AND NARCOTICS DETECTION

    Target and NARCScan are designed to detect a wide range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Rapiscan® Systems detection algorithms are based on regulatory approved material analysis techniques.

    EUROPEAN AVIATION COMPLIANCE

    918CX performance is in full compliance with the mandatory regulations (EC) No. 300/2008, (EU) No. 185/2010 and commissions decision C(2010)774 for aviation security in the European Union.

    logo

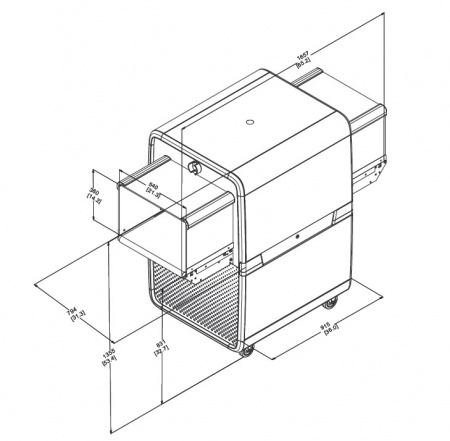

    PHYSICAL SPECIFICATIONS

    • DIMENSIONS : L 1,657 mm (65.2 in) W 795 mm (31.3 in) H 1,355 mm (53.3 in)
    • TUNNEL SIZE : W 540 mm (21.3 in) H 357 mm (14.2 in)
    • CONVEYOR HEIGHT : 830 mm (32.7 in)
    • WEIGHT (NET) : 414 Kg (913 lbs)

    logo

    ENVIRONMENT & POWER

    • STORAGE TEMPERATURE : 20°C to 50°C
    • OPERATING TEMPERATURE : 0°C to 40°C
    • RELATIVE HUMIDITY : 5 to 95% non-condensing
    • SYSTEM POWER : 100/110/120/200/208/220/230/240 VAC ±10%

    PERFORMANCE

    • CONVEYOR SPEED1 : 0.20 m/sec (39.4 ft/min)
    • CONVEYOR LOAD1 : 165 Kg (364 lbs)
    • STEEL PENETRATION : 33 mm typical, 31 mm standard
    • WIRE PENETRATION : 40 AWG typical, 38 AWG standard

    X-RAY GENERATOR

    • ANODE VOLTAGE : 140kV
    • ORIENTATION Diagonally : Upward

    GOVERNMENT REGULATORY

    • Regulation (EC) No. 300/2008 Compliant
    • Regulation (EU) No. 185/2010 Compliant
    • EU Commissions Decision C(2010) 774 Compliant
    • U.K Department for Transport (DfT) TIP Approved



    If you have any questions or concerns, contact a customer service representative today.
    Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


    Specifications

    Manufacturer Part #: 918CX
    Dimensions (LxWxH): 65.00in. x 31.00in. x 53.00in.

    PHYSICAL SPECIFICATIONS

    • DIMENSIONS : L 1,657 mm (65.2 in) W 795 mm (31.3 in) H 1,355 mm (53.3 in)
    • TUNNEL SIZE : W 540 mm (21.3 in) H 357 mm (14.2 in)
    • CONVEYOR HEIGHT : 830 mm (32.7 in)
    • WEIGHT (NET) : 414 Kg (913 lbs)

    ENVIRONMENT & POWER

    • STORAGE TEMPERATURE : 20°C to 50°C
    • OPERATING TEMPERATURE : 0°C to 40°C
    • RELATIVE HUMIDITY : 5 to 95% non-condensing
    • SYSTEM POWER : 100/110/120/200/208/220/230/240 VAC ±10%

    PERFORMANCE

    • CONVEYOR SPEED1 : 0.20 m/sec (39.4 ft/min)
    • CONVEYOR LOAD1 : 165 Kg (364 lbs)
    • STEEL PENETRATION : 33 mm typical, 31 mm standard
    • WIRE PENETRATION : 40 AWG typical, 38 AWG standard

    X-RAY GENERATOR

    • ANODE VOLTAGE : 140kV
    • ORIENTATION Diagonally : Upward

    GOVERNMENT REGULATORY

    • Regulation (EC) No. 300/2008 Compliant
    • Regulation (EU) No. 185/2010 Compliant
    • EU Commissions Decision C(2010) 774 Compliant
    • U.K Department for Transport (DfT) TIP Approved
