Description

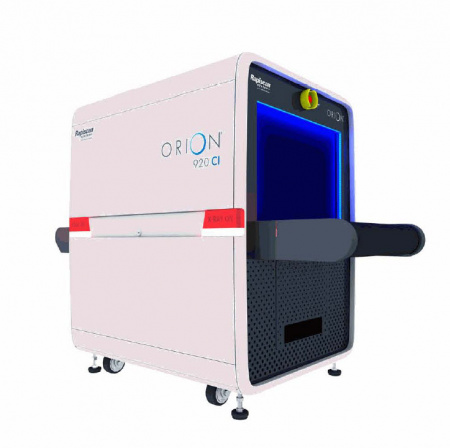

Rapiscan ORION 920CI X-Ray System

The new 920CI is an ultra-compact 620mm x 420mm tunnel X-ray security screening system with superb image quality for high threat checkpoint locations including event security, prisons and government buildings.

INDUSTRY BEST RESOLUTION & MATERIAL DISCRIMINATION

ULTRA-COMPACT, NARROWEST WIDTH & SHORTEST HEIGHT

LOW DENSITY IMAGE ENHANCEMENT

E.U CIVIL AVIATION COMPLIANT, U.K APPROVED

KEY FEATURES AND OPTIONS

• Spectrum 4
• 17 Image processing functions
• SINERGY low densitv enhancement
• Dual Mode Z-effective
• CrystalClearTM
• Automatic, Enhanced Image Archiving
• E.U. Approved Threat Image Projection
• Tray Return System Compatible
• 13 Languages
• 64-bit Operating System

SPECTRUM 4-COLOR IMAGING

920CI now can exhibit images in the Classic4-color and the new proprietary Spectrum 4-color (SP4) option providing superior image, allowing improved security by quick and accurate identification of threats and increase in throughput.

DUAL MODE Z

This feature helps operators identify organics accurately and quickly either in Range Mode which highlights the areas based on selected Z-effective numbers of 7, 8 or 9 by the operator, or in lnteractive Mode which gives the operator the option to display the Z-effective number in all the areas of the scanned item based on the value of the pixel. Oriona family are the only systems in industry that can support both Range Mode and lnteractive Mode.

EUROPEAN AVIATION COMPLIANCE

920CI performance is in full compliance with the mandatory regulations (EC) No. 300/2008, (EC) Implementing Regulation 1998/2015 and update 815/2017, EC Implementing Decision 8005/2015 and update 3030/2017 for aviation security in the European Union.

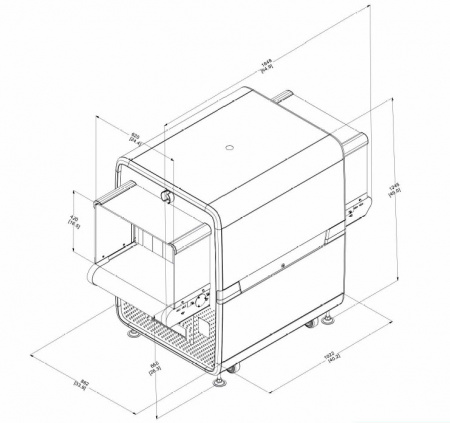

PHYSICAL SPECIFICATIONS

• DIMENSIONS : 1,650 mm (65.0 in) W 862 mm (33.9 in) H 1,245 mm (49.0 in)
• TUNNEL SIZE : W 620 mm (24.4 in) H 420 mm (16.5 in)
• CONVEYOR HEIGHT : 668 mm (26.3 in)
• WEIGHT (NET) : 394 Kg (869 Ibs)

ENVIRONMENT & POWER

• STORAGE TEMPERATURE : 20°C to 50°C
• OPERATING TEMPERATURE : 0°C to 40°C
• RELATIVE HUMIDITY : 5 to 95% non-condensing
• SYSTEM POWER : 110/230 VAC *lo%

PERFORMANCE

• CONVEYOR SPEED1 : 0.20 m/sec (39.4 ft/min)
• CONVEYOR LOAD1 : 165 Kg (364 lbs)
• STEEL PENETRATION : 30 mm standard
• WIRE PENETRATION : 40 AWG standard

X-RAY GENERATOR

• ANODE VOLTAGE : 140kV
• ORIENTATION Diagonally : Upward

GOVERNMENT REGULATORY

• Regulation (EC) No. 300/2008 Compliant
• Regulation (EU) No. 185/2010 Compliant
• EU Commissions Decision C(2010) 774 Compliant
• U.K Department for Transport (DfT) TIP Approved
