Description

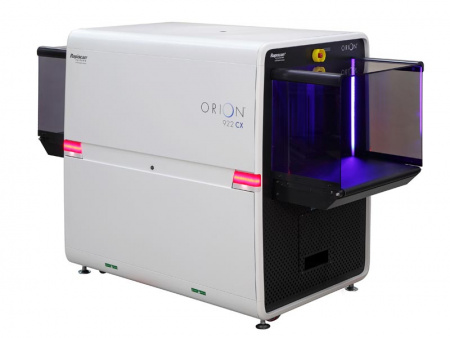

Rapiscan ORION 922CX High Performance x-Ray System

The new 922CX is a high performance 750mm by 550mm tunnel checkpoint Screening system with best in industry Resolution and excellent threat Detection alert capabilities for large Carry-on baggage and parcels at the Checkpoint.

INDUSTRY BEST WIRE & SPATIAL RESOLUTION

EXPLOSIVES & NARCOTICS DETECTION

LOW DENSITY IMAGE ENHANCEMENT

MATRIXING, NETWORKING & REMOTE VIEWING

KEY FEATURES AND OPTIONS

• Explosive threats, narcotics & density alerts
• Spectrum 4
• 17 Image processing functions
• SINERGY low density enhancement
• Dual Mode Z-effective
• CrystalClear
• Automatic, Enhanced Image Archiving
• E.U. Approved Threat Image Projection
• Remote Status Monitoring
• Remote Archive Review
• Multi-System Alarm Resolution Network
• Multiplexing and Matrixing
• Tray Return System Compatible
• 13 Languages
• 64-bit Operating System

SPECTRUM 4-COLOR IMAGING

922CX can present images to the operator in the Classic 4-color and the new proprietary Spectrum 4-color (SP4) option providing superior image, allowing improved security by quick and accurate identification of threats and increase in throughput.

DUAL MODE Z

This feature aids the operator in quick identification of organic materials, either in Range Mode which highlights areas based on operator selected Z-effective values of 7, 8 or 9, or in Interactive Mode which gives the operator the option to display the Z-effective number of a selected pixel.

EXPLOSIVES AND NARCOTICS DETECTION

Target and NARCScan are designed to detect a wide range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Rapiscan® Systems detection algorithms are based on regulatory approved material analysis techniques.

EUROPEAN AVIATION COMPLIANCE

922CX performance is in full compliance with the mandatory regulations (EC) No. 300/2008, (EC) implementing regulation 1998/2015 and update 815/2017, EC implementing decision 8005/2015 and update 3030/2017 for aviation security in the European Union.

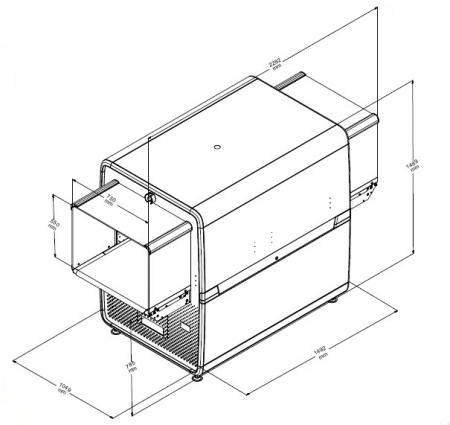

PHYSICAL SPECIFICATIONS

• DIMENSIONS : 2,282 mm (89.4 in) W 1,049 mm (41.29 in) H 1,489 mm (58.26 in)
• TUNNEL SIZE : W 750 mm (29.52 in) H 550 mm (21.65 in)
• CONVEYOR HEIGHT : 785 mm (30.90 in.)
• WEIGHT (NET) : 628 Kg (1384.5 lbs)

ENVIRONMENT & POWER

• STORAGE TEMPERATURE : 20°C to 50°C
• OPERATING TEMPERATURE : 0°C to 40°C
• RELATIVE HUMIDITY : 5 to 95% non-condensing
• SYSTEM POWER : 100/110/120/200/208 /220/230/240 VAC ±10%

PERFORMANCE

• CONVEYOR SPEED1 : 0.20 m/sec (39.4 ft/min)
• CONVEYOR LOAD1 : 165 Kg (364 lbs)
• STEEL PENETRATION : 38 mm typical 36 mm standard
• WIRE PENETRATION : 42 AWG typical 40 AWG standard
• Spatial resolution : 0.8 mm vertical & horizontal

HIGH SPEED OPTION

Conveyor speed1 : 0.35 m/sec (68.9 ft/min)

Steel penetration : 31 mm typical 30 mm standard

Wire resolution : 38 AWG typical 36 AWG standard

Spatial resolution : 0.8 mm vertical & horizontal

X-RAY GENERATOR

• ANODE VOLTAGE : 160kV
• ORIENTATION Diagonally : Upward

GOVERNMENT REGULATORY

• Regulation (EC) No. 300/2008 Compliant
• Regulation (EU) No. 185/2010 Compliant
• EU Commissions Decision C(2010) 774 Compliant
• U.K Department for Transport (DfT) TIP Approved
