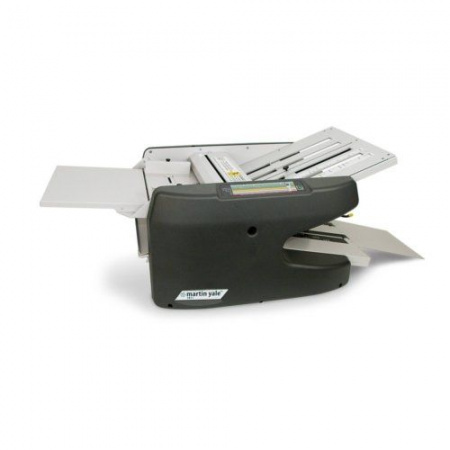

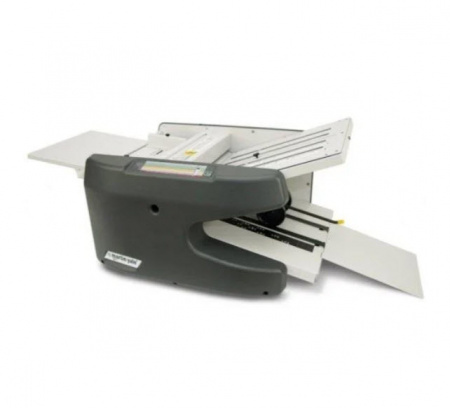

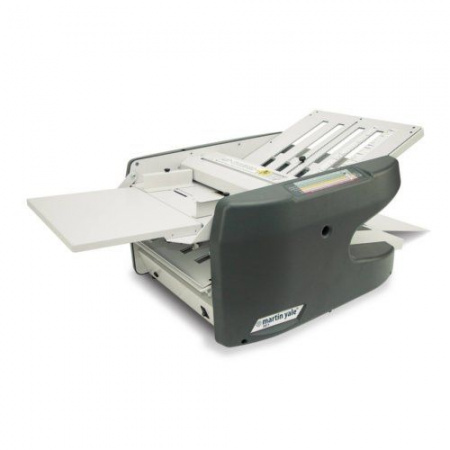

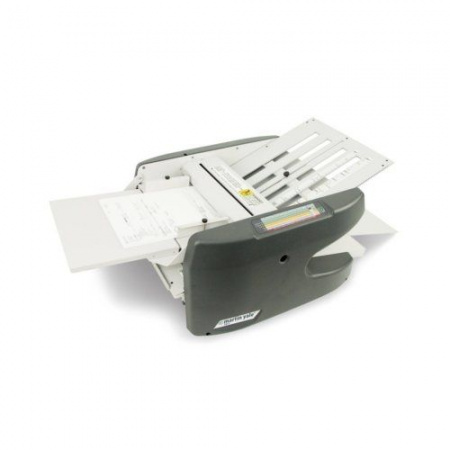

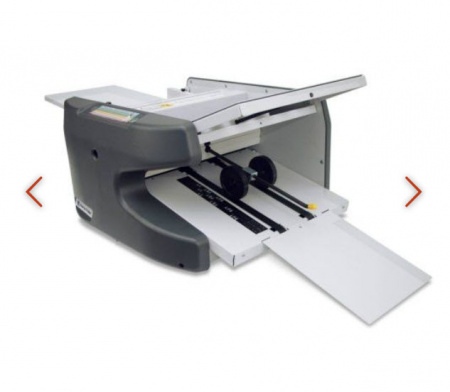

Martin Yale 1811 ELECTRONIC 11 X 17 Automatic Paper Folder

THE MARTIN YALE 1811 HAS BEEN DISCONTINUED AS OF 03/01/2024, HOWEVER, WE STILL SELL THE ACCESSORIES AND REPLACEMENT PARTS FOR IT.

This Martin Yale 1811 Automatic Paper Folder automatically feeds, folds and collects a stack of documents. It operates at a speed of up to 12,000 sheets per hour. Its feed table has a capacity of 300 sheets of 20lb bond paper. The Martin Yale 1811 creates seven different fold types: Letter, Z-fold, Half, Double-Parallel, Gate, Engineering and Church fold. This Martin Yale 1811 Automatic Paper Folder is ideal for use in mail-rooms, offices, churches, schools, businesses and associations.

Use the link below if you need it to make sure you are ordering the correct part name and part number, or if you do not see the Part listed below on this page.

Martin Yale 1811 Automatic Paper Folder Parts List and Exploding Diagram

FEATURES

• Great to use in mailrooms, offices, churches, schools, businesses and associations.
• Handles paper weight from 16lb. bond to 135# Offset, 60 gsm to 240 gsm.
• Operates at a speed of up to 12,000 sheets per hour.
• Automatically feeds, folds and collects a stack of documents.
• Folds sheet sizes from 4.0 L x 4.0 W Inch to 17.0 L x 11.0 W. Inch
• Feed table capacity can hold up to 300 sheets of 20 lb. bond.
• Adjustable 1st fold range of 2 to 11.5 Inch
• Adjustable 2nd fold range of 1.5 to 5.75 Inchallowing for customized folds.

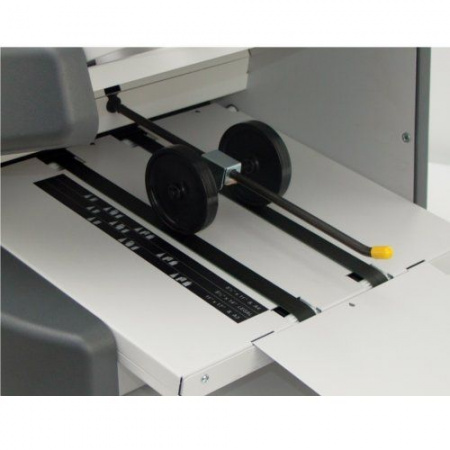

• Large rubber rollers provide consistent paper feeding.
• Durable conveyor belts create easy-to-handle, fanned stacks.
• Will fold stapled sets of up to 5 sheets through the manual bypass.

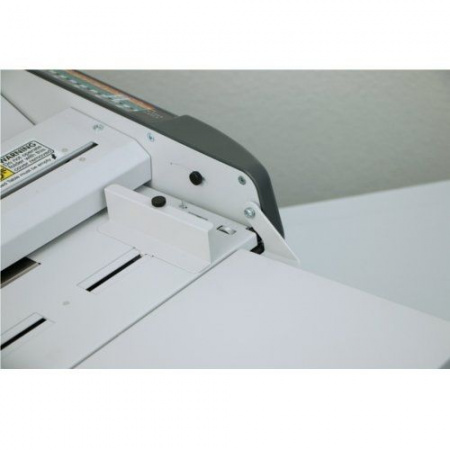

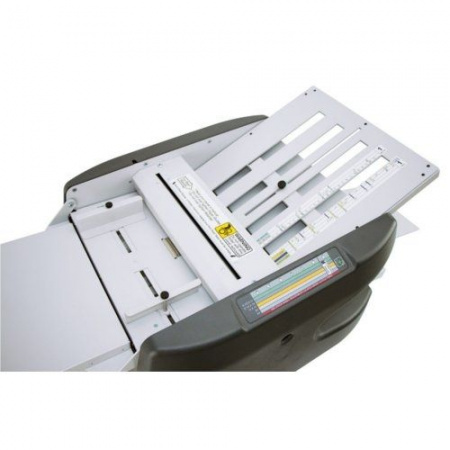

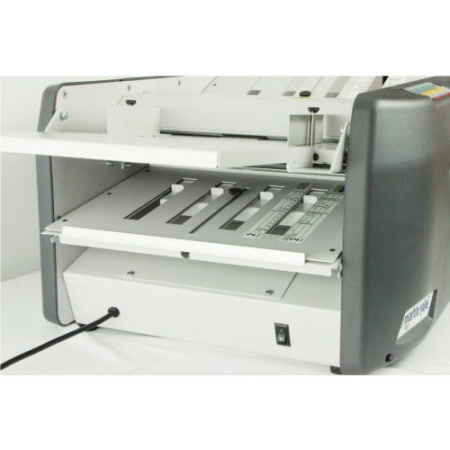

• Fully enclosed, manually adjusted fold tables for quieter operation and improved operator safety.

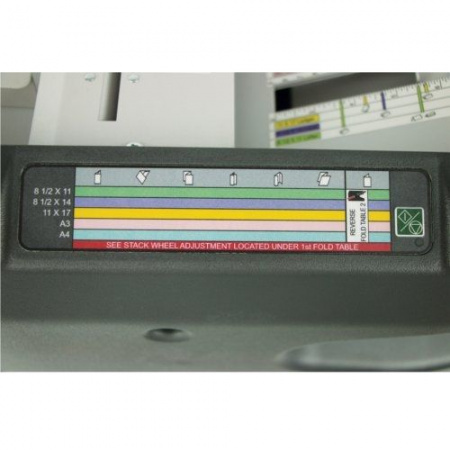

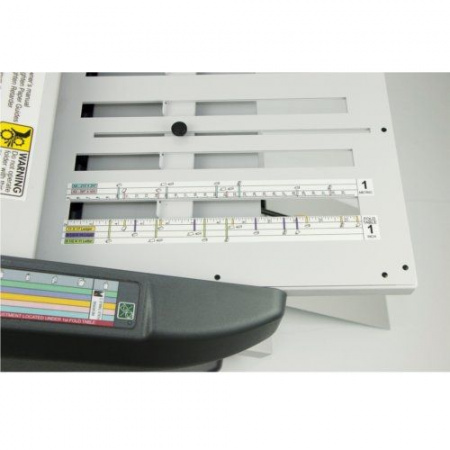

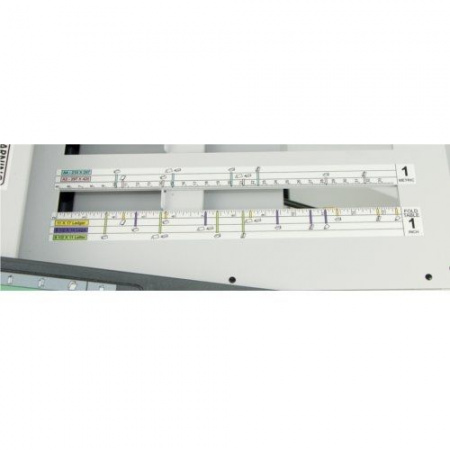

• Manual set up for fold tables.
• Fold types: Creates seven different fold types: Letter, Z-fold, Half, Double-Parallel, Gate, Engineering and Church fold.

Specifications

• Model Number : 1811
• Max Speed : 12,000
• Paper Size Range : 4 L x 4 W Inch to 17 L x 11 W Inch ; A3, A4, A5 Papper Size
• Paper Weight Range : 60 gsm to 240 gsm 16# Bond to 135# Offset
• Max Manual Paper Feed : 5 sheets
• Max Feed Tray Capacity : 300 sheets
• Automatic Fold Table Setup : No
• Automatic Shut Off : Yes
• Electrical : 115/230v
• Product Dimensions : 19.5 L x 41.0 W x 14.0 H Inch (49.5 x 104.2 x 35.6 cm)
• Product Weight : 81.0 lbs (36.7 kg)

Spare/Replacement Part for Martin Yale 1811 AutoFolder Ease of Use Autofolder Paper Folding Machine

Martin Yale Replacement Part W-A1617054 Asy Retarder Assembly for Autofolder Paper Folding Machine

Martin Yale Part M-O1811092 Replacement 1811 FEED WHEEL

MARTIN YALE PART # W-O1811083 Feed Tray Paper Lift Spring

MARTIN YALE PART # M-S037403 - Double Tape

MARTIN YALE PART # M-S025398 Main Drive Belt (Replaced M-S025073)

Martin Yale Replacement Part M-S002065 Feed Wheel Set Screw (uses 1/16” Hex Wrench)
