Description

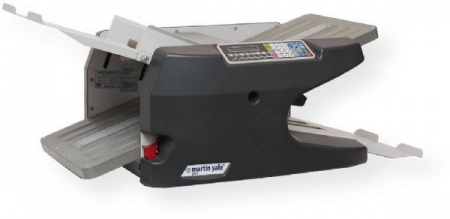

Martin Yale 2051220 Smartfold 230V Paper Folding Machine

FEATURES

• Handles paper weight from 18lb. to 90 lb. index, 68GSM to 166GSM
• Variable speed ranges from 3,000 to 15,000 sheets per hour
• Folds sheet sizes from 2.5 x 5.2 Inch to 12 x 18 Inch
• Feed table capacity can hold up to 500 sheets of 8.5 x 11 Inch, 20 lb. bond
• High memory capacity with 7 preset folds and 10 custom folds
• Capable of feeding a wide range of paper weights without having to adjust the feed system, saving time between fold jobs
• Diagnostics mode for quick and easy trouble shooting and setup with 7 sensors
• Fully enclosed fold tables for quieter operation and improved operator safety
• 2-line x 20 character LCD display provides operator with visual feedback prompt
• 5 pre-programmed paper sizes: 8.5 x 11 Inch, 8.5 x 14 Inch, 11 x 17 Inch
• Automatic shut-off
• Seven pre-programmed fold types: Letter, Z-fold, Half, Double-Parallel, Gate, Engineering and Church
• Made in the U.S.A

SPECIFICATIONS

• Electrical : 230V/60 Hz
• Feed Tray Capacity : Up to 500 sheets
• Dimensions : 43.2 W x 22.2 D x 18 H Inch
• Weight : 102 lbs.
