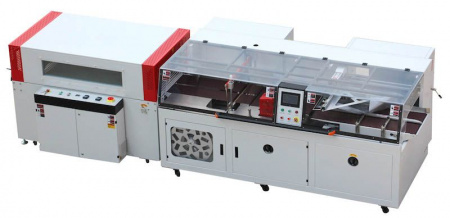

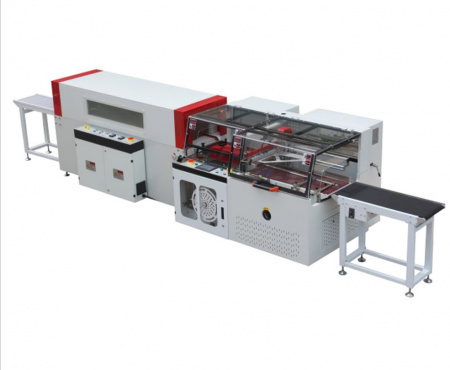

Side Seal Machine | PP-5580TBH Entry Level Intermittent Motion Side Seal Machines

2-Belt fully automatic, infinite length, side seal machines will seal all commercially available polyolefin and polyethylene films. 2 belt design provides for smooth product transition from infeed belt to side seal, then through cross seal bar. Omron Inverter Drives with Variable Speed Drive 0 to 1 00 FPM.

FEATURES

• Omron PLC
• Teflon Coated Hot knife Cross Seal Bar
• Servo Motor Drive on Cross Seal
• Independent digital temperature controls
• Omron Color Touch Screen
• Motorized scrap wind up wheel with built in alarm when full
• Emergency stop switch with reset button
• Automatic pin wheel hole punch
• Powered in-feed conveyor with electric eye to start cycle
• Adjustments for bag size front and back
• Rear mounted film carriage
• Accepts random length products with no changeover required
• Adjustable height legs with locking casters
• Fully enclosed seal area
• Safety interlocks on all doors

SPECIFICATIONS

• Seal Area:31 Inches (787.4 MM) Cross Seal x 12 H Inches (304.8 MM)
• Min Pkg Size :24 Inches W (609.6 MM) x 12 L Inches (304.8 MM)
• Speed : 40-60 PPM
• Electrical:220 Volt, 1 phase, 20 amp
• Air: 3-4 CFM at 80 PSI
• Power:3.4kw (3,400 watts)
• Net Weight:1,000kg (2,200 Lbs)
• Machine Dimensions:127 L x 81 W x 62 H INCHES (3225.8 x 2057.4 x 1574.8 MM)
• Warranty:1 year on all parts
