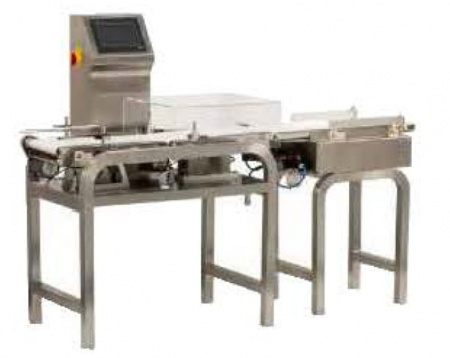

Checkweighers | Excel C Series Model C-30000 High Precision Checkweighers with Paddle Reject

Uses advanced digital signal processing and high speed weighing to detect the weight of your product and match it with the target weight you have pre-set into the machine parameters. If the package does not match your pre-set parameters the product Is rejected. Products are ejected via a paddle reject system or optional air blast reject.

FEATURES

• Solid 304 Stainless Steel construction
• PLC control system
• 7-inch OMRON color touch screen
• KEYENCE photoelectric sensor
• 50 program memory
• Comes with standan::l paddle-style rejecter

Options

• Pneumatic Pusher Reject
• Air Blast Reject
• USB Port to download data
• Leveling pad/locking caster

SPECIFICATIONS

• Inspection Range : 0.1 - 30 (kg) / 0.22 - 66 (lbs)
• Product Width Max : 500 mm (20 Inch)
• Product Length Max : 650 mm (25.5 Inch)
• Speed : 30 ppm
• Accuracy (gram) : +-5 - 20 gram
• Machine Weight : 240 kg (530 lbs)
• Dimensions (L x D x H): 1960 x 1090 x 1320 (77 x 43 x 52 Inch)
• Power (kw) : 0.75
• Voltage : 220VAC, 50Hz, 1-Ph
