Description

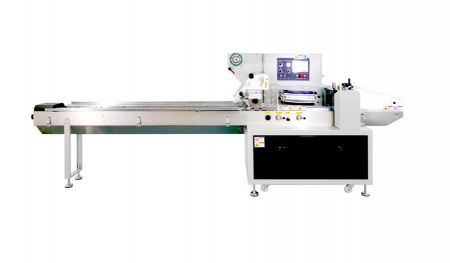

HORIZONTAL FLOW SHRINKWRAPPER Preferred Pack C-250 Fully Automatic Horizontal Polypropylene Wrapping Machine with “Micro Design” for small packages

Model C-250 Fully Automatic Horizontal Polypropylene Wrapping Machine with “Micro Design” for small packages. This machine is capable of running product speeds of 40 to 100 + packages per minute depending on package length, package height and film thickness etc.

Customer is responsible for hand feeding products into the moving infeed conveyor were the product is conveyed to the forming shoe then pulled by the finwheels to the end seal jaws were the package is sealed and cut then transported via the discharge conveyor away from the wrapper. Customer is responsible for product handling after discharged from machine.

FEATURES

• 7” Omron color touch screen HMI, simple and easy to use control panel with digital temperature controls, speed control adjustment and stop switch
• “Micro Design”-for transferring very small packages through the forming box and tongue plates
• 12 Program product recipe which allows the operator to save the product settings into the machine HMI for easy product changeover in the future.
• Omron digital temperature controls
• Touch screen menu with automatic self diagnostics with error display
• Panasonic PLC control system
• Panasonic variable speed inverters
• One step adjustment of bag length
• Production speed of 40 to 150+ PPM can be reach with dual jaws
• 2 ft Powered discharge conveyor
• Solid state relays and wiring harness with wire numbers on each wire
• Dual set of fin wheels – First set is cold to drive the film, the second set is heated to seal the film
• 6 ft flighted infeed conveyor with stainless steel contact surfaces.
• Production counter
• Fixed Forming Box – Easy change out of plow sizes if required.
• Main frame is manufactured in anti-corrosive RAL 9007 paint. In-feed is all stainless steel decking with all stainless steel side panel
• Print film registration-Omron photo eye included
• 4.3” wide cross seal jaw
• Adjustable width stainless steel in-feed guide rails
• Will seal all commercially available films, Polypropylene, co-extruded, laminates, foil/poly and paper/poly;
• Emergency safety stop switch
• Fully enclosed plexiglass safety covers with safety interlocks on both in-feed and discharge conveyor belts.
• Your machine is professionally crated and protected from damage during shipment.

SPECIFICATIONS

• Cross Seal Jaw : 4.3 Inch (109 mm) Wide;
• Bag Length : 4.7 -11 Inch (120 mm-280 mm) Single Jaw / 2.75 -7.5 Inch (70 mm-190 mm) Dual Jaw
• Bag Width : 1.25 - 4.25 Inch (30 mm-110 mm)
• Product Height : 1.5 Inch (40 mm) Max
• Max Film Width : 9.8 Inch (250 mm) Max
• Electrical : 220 volt, 1 Phase, 20 Amp
• Power : 2.5Kw
• Machine Dimensions : 148 L x 27 W x 57 H Inch
• Weight : 900 Lbs (400 kg)
• Warranty : 1 year on all parts
• Machine orientation : Product flow will be from left to right when viewed from operators perspective.

If you have any questions or concerns, contact a customer service representative today.
