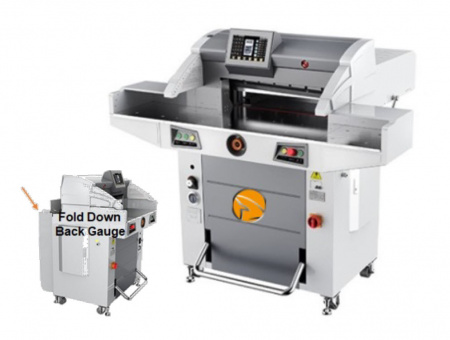

Shark SC-22TS Paper Cutter with Fold-Down Backgauge

Shark Finishing Machinery introduces to its line of digital print finishing equipment the SC-22 Paper Cutter. This is a heavy-duty 22.05” hydraulic paper cutter. It has been built stylish and solid. Comes standard with features that usually come at an additional cost with other manufactures. It is fully programmable with easy to use large 10" LCD touch screen display and holds 80 programs. Also equipped with fold-down back gauge which allows the cutter to fit through most standard size doors. Also comes with side tables, red LED cut-line light, soft clamp foot pedal, knife latch, blade depth adjustment, and emergency stop. It has safety light beams on the main bed as well as the side tables for added security. A roller bed has been added to this model for easy paper handling. This machine is easy to program, simple to operate, and requires little maintenance.

FEATURES

• Three convenient sizes available
• Standard side tables on models; SC-22TS & SC-26TS
• Foot Pedal clamp on models; SC-22TS & SC-26TS
• Red LED cut line light for better visibility
• Light safety beams for added safety to the operator
• LCD display
• Completely programmable
• Automatic Paper Eject Option
• Two hand push button operation
• Blade latch device prevents blade descent in case of emergency
• Blade depth adjustment from outside the machine, no need to remove covers
• Emergency Stop

SPECIFICATIONS

• Maximum cutting width : 22.05in. / 56cm/ 560 mm
• Maximum cutting depth : 22.05in. / 56cm/ 560 mm
• Minimum cutting size : 0.79in / 2cm / 20 mm
• Clamp Opening Height : 3.35in / 8.5cm/ 85 mm
• Work space (edge to blade) : 18.5in. / 47cm / 470mm
• Cutting : Hydraulic
• Clamping : Hydraulic
• Blade Depth Adjustment : Yes (outside)
• Foot Pedal : Yes
• Blade Safety Latch : Yes
• Side Tables : Yes
• Size of side tables (each) : 13.5 x 13.75in / 34.3 x 35cm
• Cut Line Light : Yes
• Roller Bed : Yes
• LCD Display : Yes
• Touch Screen : Yes
• Fully Programmable : Yes
• Job Memory : 80
• Light Safety Beams : Yes
• Emergency Stop : Yes
• Power : 220v, 50/60 hz, 20A, Single Phase
• Weight : 1,080 lbs. / 490 kg
• Size w/ side tables (LxWxH) : 57.5 x 61.75 x 56 in / 146 x 156.8 x 142.2 cm / 1460.5 x 1568 x 1422.4 mm
• Safety Standards : Complies with latest CE safety standards
• Warranty : 1 year
