Description

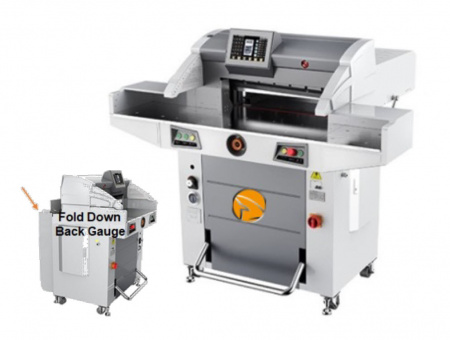

Shark SC-26TS Paper Cutter with Fold-Down Backgauge

Shark Finishing Machinery introduces to its line of digital print finishing equipment the SC-26 Paper Cutter. This heavy-duty 26.4” hydraulic paper cutter is built stylish and solid. Comes standard with features that usually come at an additional cost with other manufactures. It is fully programmable with easy to use LCD display and holds 88 programs. It has safety light beams for added safety and LED cut-line light for precise cutting. Also equipped with side tables, soft clamp foot pedal, knife latch, blade depth adjustment, and emergency stop. This machine is easy to operate and requires little maintenance.

FEATURES

• Three convenient sizes available
• Standard side tables on models; SC-22TS & SC-26TS
• Foot Pedal clamp on models; SC-22TS & SC-26TS
• Red LED cut line light for better visibility
• Light safety beams for added safety to the operator
• LCD display
• Completely programmable
• Automatic Paper Eject Option
• Two hand push button operation
• Blade latch device prevents blade descent in case of emergency
• Blade depth adjustment from outside the machine, no need to remove covers
• Emergency Stop

SPECIFICATIONS

• Maximum cutting width : 26.4in. / 67cm/ 670 mm
• Maximum cutting depth : 26.4in. / 67cm/ 670 mm
• Minimum cutting size : 1.18in / 3cm / 30 mm
• Clamp Opening Height : 3.35in / 8.5cm/ 85 mm
• Work space (edge to blade) : 18.5in. / 47cm / 470 mm
• Cutting : Hydraulic
• Clamping : Hydraulic
• Blade Depth Adjustment : Yes (outside)
• Foot Pedal : Yes
• Blade Safety Latch : Yes
• Side Tables : Yes
• Size of side tables (each) : 13.5 x 13.75in / 34.3 x 35cm
• Cut Line Light : Yes
• Roller Bed : Yes
• LCD Display : Yes
• Touch Screen : Yes
• Fully Programmable : Yes
• Job Memory : 88
• Light Safety Beams : Yes
• Emergency Stop : Yes
• Power : 220v, 50/60 hz, 20A, Single Phase
• Weight : 1,146 lbs. / 520 kg
• Size w/ side tables (LxWxH) : 53.5 x 65.5 x 57 in. / 136 x 166 x 145cm
• Safety Standards : Complies with latest CE safety standards
• Warranty : 1 year

If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com
