Description

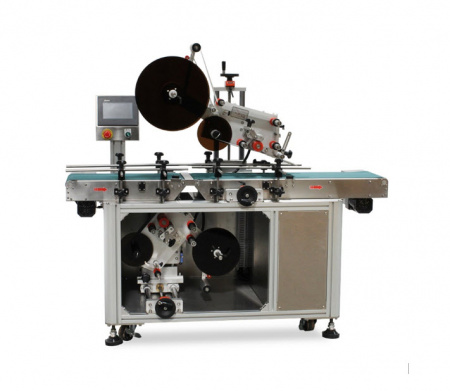

Labeling Machines | Preferred Pack Preferred Pack Model PP-616 Top Label Applicator

The Preferred Pack model PP-616 wrap around label applicator will apply a label to the Top, Front and wrap around the bottom of a container. The PP616 will feed the label out vertically then fold the label underneath the container using a roller folding device. This unit is also commonly referred to as a Clamshell Labeler because it wraps around the 3 sides of a container. Features a side folding conveyor with label feeding position and angle adjustment.

Different sizes containers are accommodated through simple adjustments. The PP-616 combines excellent performance and versatility at an affordable price. Efficiency is maintained during product changes with simple tool-free adjustments for the conveyor and applicator. The PP-616 is constructed of #304 Stainless Steel and state-of-the-art Delta color touch screen technology. Memory ports for 20 different sizes of products deliver fast, easy to use “need it now” reliability when changeovers are required. Our pre-delivery inspection confirms proper set-up and functionality, ensuring every machine is set up to your specific application.

Product Application

The Preferred Pack model PP-616 will run at speeds of up to 60+ PPM depending on label size, product spacing, product shape and line conditions. The PP-616 is stepper driven, ensuring excellent repeatable label placement at a 1mm accuracy. Set-up instruction via touch screen is included in the intelligent Delta pod. Settings can be stored for the most common 20 products for quick recall on product changeovers. Each application differs in regard to product size and shape, label size and shape, and specific placement of labels on the various products.

SPECIFICATIONS

• Type of Labels : Top, Front and Bottom
• Label Width : 10-130mm (3/8 - 5 Inch)
• Label length : 10mm min (3/8 Inch) to unlimited length
• Maximum Container Width : 216 mm (8.5 Inch) * Optional larger widths available
• Maximum Container Height : Flat 191mm (7.5 Inch)
• Conveyor Belt Width : 137 mm (5.4 Inch) *optional widths available
• Conveyor Length : 1,600 mm (63 Inch)
• Voltage : 110 VAC 50/60 HZ 1 Phase 20AMP Dedicated
• Power in KW : .700
• Controls : Delta Color Touch Screen
• Dispensing Speed : 0-25m/min (82’)
• Conveyor Speed : 0-25m/min (82’)
• Spool Diameter : 356 mm (14 Inch)
• Inner Core : 76mm (3 Inch)
• Label Accuracy : +/- 1 mm
• Drive : Stepper Motor
• Dimensions L-W-H : 1400mm x 650mm x 1480mm (55 x 25.6 x 58 Inch)
• Net Weight : Approx 120 kgs (265 lbs)

If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com
