ELC BP-400 V.F.F.S Vertical Automatic Packaging Machines BP1 Series
Call Toll Free: 877.336.6877 for Pricing
Availability
Online
In Store
Same Day
Description

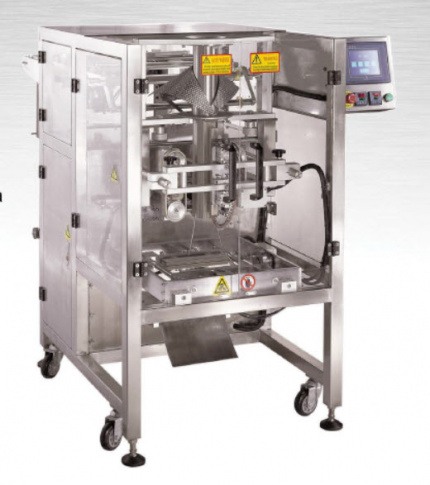

ELC BP-400 V.F.F.S Vertical Automatic Packaging Machines BP1 Series
ELC BP1 Series are affordable Vertical Form Fill and Seal Packaging Machines
FEATURES
- Film registration is controlled by a highly accurate single position photo eye, no position adjustment is required by the operator other then lateral adjustments for different web widths. Cut-off position and lateral adjustments can be made by the operator on the fly via the computer touch screen during production
- One-piece bag former, quickly changes with no tools
- Printer and film feeding system synchronously working together
- PLC controller with touch screen interface for easy operation
- Servo motor for film pulling
- Safety switch on doors
- Speeds up to 60 bags per minute, actual packaging speed is determined by bag size, film material and the speed of combined filling equipment
SPECIFICATIONS
- Max. Film Width : 400 mm
- Bag Width : 60 - 190 mm
- Bag Length : 50 - 240 mm
- Speed : Max. 60 bpm
- Power Supply : 220V, 50HZ, 3Kw
- Air Requests : 0.3m%/min, 0.6MPa
- Outer Dimensions : L 1290 x W 940 x H 1180 mm (51 x 37 x 46 INCH)
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | BP-400 |
| Dimensions (LxWxH): | 51.00in. x 37.00in. x 46.00in. |
