ELC Model EH1000 V.F.F.S Vertical Automatic Packaging Machine with Stainless Steel Frame / Cabinet
Call Toll Free: 877.336.6877 for Pricing
Availability
Online
In Store
Same Day
Description

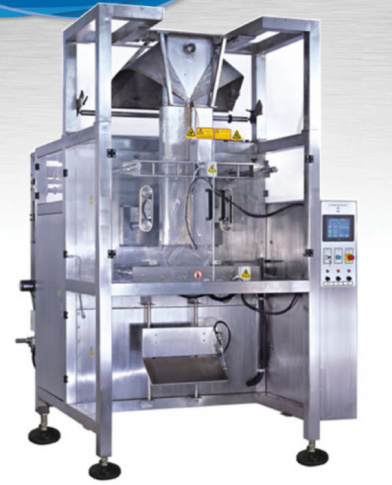

ELC Model EH1000 V.F.F.S Vertical Automatic Packaging Machine with Stainless Steel Frame / Cabinet
Model ELC EH is an Intermittent Motion, Single Jaw V.F.F.S. Bagmaker. Single Servo Model
FEATURES
- Film registration is controlled by a highly accurate single position photo eye, no position adjustment is required by the operator other then lateral adjustments for different web widths. Cut-off position and lateral adjustments can be made by the operator on the fly via the computer touch screen during production
- One-piece bag former, quickly changes with no tools
- Hot printer and film feeding system synchronously working together
- PLC controller with touch screen interface for easy operation
- Servo motor for film pulling
- Safety switch on doors
- Speeds up to 20 bags per minute, actual packaging speed is determined by bag size, film material and the speed of combined filling equipment
SPECIFICATIONS
- Film Width : 500 mm - 1000 mm
- Bag Length : 100 mm - 600 mm
- Packing Speed : Max. 20bpm
- Power Supply : 220V, 60Hz 5kW
- Air Requests : 0.9m3/min, 0.6Mpa
- Outer Dimensions : 2170 x 1780 x 2840 mm
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | EH1000 VFFS |
