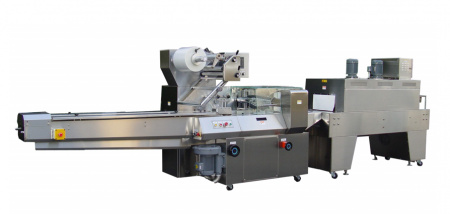

Wrapper | Preferred Pack S-5535-SH-TS Fully Automatic Single Axis

Model S-5535-SH-TS Fully Automatic Single Axis “SERVO DRIVE” horizontal “Shrink Wrapping System” with “Bottom Trim Seal”. This machine is capable of running product speeds of 100-150 packages per minute depending on package length, package height and film thickness etc.

The customer is responsible for hand feeding products into the moving infeed conveyor were the product is conveyed to the forming shoe then pulled by the finwheels to the end seal jaws were the package is sealed and cut then transported via the discharge conveyor away from the wrapper. The customer is responsible for product handling after discharge from machine.

FEATURES

• Simple and easy to use Delta 7” color touch screen control panel HMI
• Single Servo drive motor controls for fin seal function
• Siemens PLC (program logic controller)
• Siemens digital temperature controls
• Delta Servo drive controller
• Speed controlled with inverter adjustment
• Production speeds of 100-150 PPM *can be achieved depending on product size and packaging material used
• Package speed display
• 8” wide end seal jaw
• Center Seal Trim Sealer with scrap winding device, features automatic engage/disengage function when the machine is running and stopped
• 2ft Powered discharge conveyor
• Vacuum driving belt between center and end seal to maintain proper spacing.
• Transfer chain conveyor on end sealing station
• End seal overload protection function with auto stop and disengage if product hit
• Fuse protected with solid state relays
• 7 ft. flighted infeed conveyor with stainless steel contact surfaces and adjustable product side guides
• 50 program memory for different product sizes.
• Bag length / Bag counting display
• Electronic bag length adjustment
• Electronic speed variation
• Adjustable film forming box
• Auto Centering Film Roll Holder for quick roll changeover
• Main frame is powder coated. In-feed is all Stainless-Steel decking with all Stainless Steel side panel.
• Film end detection with automatic stop
• Will seal all commercially available shrink films
• Transfer chain conveyor on end seal for transferring small packages
• Transfer suction belt conveyor between center sealer and end sealer with suction blower
• Pin wheel film perforator to evacuate air from bag
• Top brush belt for holding products before end seal
• Emergency safety stop switch
• Fully enclosed plexiglass safety covers on both in-feed and discharge conveyor sealing areas.
• Manufactured to “CE” European safety standards, Exceeds OSHA safety standards
• Top brush belt on infeed and discharge of seal area for smooth product transfers.
• Overload protection on seal jaws with automatic disengage in case of product jam, If the jaws jam the transmission will automatically be disengaged and the jaws would be automatically reversed slightly for cleaning.
• Powered discharge brush helps packages separate from sealing jaw;
• Air pressure regulator with water trap.
• Your machine is professionally crated and protected from damage during shipment.

SPECIFICATIONS

• Max Film Width :350 mm (13.7 Inch)
• Max Prod Dimensions :7.5 W x 2.75 H Inch
• End seal jaw width: 7.8 Inch (200 mm)
• Electrical:220 volts, 3 Phase, 10 Amp
• Machine Dimensions:148 L x 27 W x 57 H Inch
• Weight: 2,800 Lbs
• Machine orientation: Product flow will be from left to right when viewed from operator’s perspective.

DEMO VIDEO

Right Angle Feeders - recommended to take the advantage of the speed.

Yellow Cakes:

Chocolate

Rice Crisp

Flow Wrapper with Shrink Wrapper:

90 Degree Feeding Rubber Rolle:

Small Box @ 140 PPM

The Smart Belt will take incoming products and form the desired presentation and spacing for passing through the machine.

Smart Belt with cookies at 240 PPM

Cross Belt Feeding with cookies

Round Cookie Feeder

Cookie bites at 400 PPM
