Description

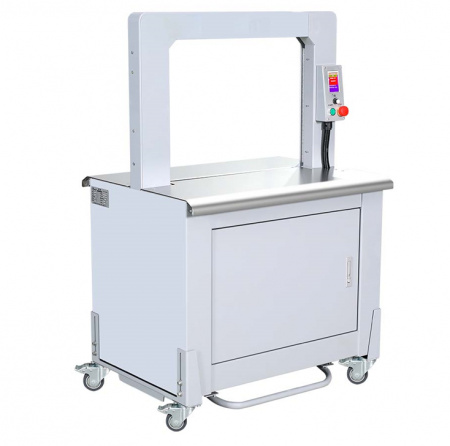

Strapping Machines | Preferred Pack PP-Q80KS Fully Automatic Servo Drive High Speed Strapping Machine

FEATURES

• Fast operating speed 60 straps per minute
• Servo Motor Drive, fast and accurate
• Automatic strap threading function
• Anti-Jam function-Automatic loop ejection system clears unwanted strap if a jam occurs
• Automatic cycle switch controls feeding and strapping motions,
• Electronic strap tension control, 5-20 kg (44 lbs)
• Instant constant heat plate- provides 30-second quick start
• PLC – Program logic controller with solid state controls.
• Automatic motor shut off after 60 seconds
• Can use 5,6,7,8,9,10,11 or 12mm strap sizes, (to be specified at the time of order)
• Adjustable strap cooling time for light or heavy pkgs.
• Min Pkg size: 70mm (2.75 Inch) W x 20 mm (.78 inch) H
• Strap thickness, 0.35 to 0.65 mm
• Strap core size, 200mm (8 x 8 Inch) or 280 mm (11 Inch)
• Table height, adjustable from 820 mm (32.3 Inch) to 920mm (36.2 Inch)
• Simple hands-free “Foot Pedal” operation
• Cycle Counter
• Safety Switch-If the door is opened the machine will automatically stop.

SPECIFICATIONS

• Electrical: 110 Volt, 1 Phase, 10 Amp
• Power:500W
• Air: None required
• Weight:380 Lbs
• Dimensions: 50 L x 31 W x 59 H Inch
• Warranty: 1 Year on parts.
