Description

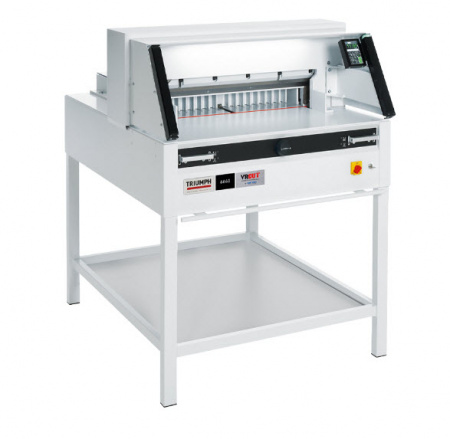

MBM VRCut Ready Triumph 6660 25-1/2" Automatic Programmable Paper Cutter Package - CU0492VP

Floor Stand Cutter with 600 Sheet Capacity, 25.5" Cutting Length, and 1 Inch Narrow Cut with Cutter Knives, Cutter Sticks, and Side Tables

The Triumph 6660 is a programmable cutter with a power back gauge, IR safety light beams on the front table, an automatic clamp, and a digital touchpad. This package includes a cutter, an extra knife, side tables, and extra cutting sticks. This package adds a lot to the programmable cutter. Therefore, adding it during your purchase will enhance the overall productivity of the operations.

MBM VRCut Ready Triumph 6660 Comes with a Full Package - Cutter CU0492V), Six Cutting Sticks (AC0679), Cutting Knives (AC0656) for accuracy, and Side Tables 32 Inches (CU0495).

Package Includes

• A Cutter (CU0492V)
• Side Tables (CU0495)
• Cutting Knife (AC0656)
• Sticks (AC0679)

Dimensions

• Cutting height: 3 Inches
• Length behind the blade: 24 Inches
• Narrow cut: 1 Inches
• Cutting width: 25 1/2 Inches

MBM 6660 Paper Cutter Features

• MBM 6660 paper cutter with powerful 2hp motor for enhanced efficiency
• Operates with normal power requirements giving optimal results
• Features patented EASY CUT electronic blade activation bars for facilitating operation with two hands
• Features Electric blade and clamp drive that enables safe handling of the blade
• Equipped with disc brake for controlled blade movements
• Presents electric back gauge drive with touchpad for quick programming
• Has standard paper sizes built-in for users’ convenience
• Facilitates users with the repetitive cutting jobs with its memory key
• Features self-diagnostic system with error indication to ensure accurate cutting all the way through
• Features LED optical cutting line that highlights the areas being cut
• Possesses German steel blade that promises durability
• Includes standing with storage shelf, easy-access tool holder and paper-blocking tool as added amenities
• Presents all-metal construction that supports the installation effectively
• UL and C UL approved product

SPECIFICATIONS

• Dimensions (H”xW”xD”) : 51 x 39 x 48 (61.5 W with side tables)
• Length Behind Blade (Inches) : 24
• Narrow Cut (Inches) : 1
• Cutting Width (inches) : 25.5
• Sheet Capacity : 600
• Operation : Automatic Programmable
• Type of cutter : Floor Stand Cutter
• Cutting Height (Inches) : 3
• Blade Drive : Electric
• Paper Clamp : Automatic
• Back Gauge Setting : Electronic Hand Wheel
• Warranty : 1 Year
• Country of Origin : Germany
• Power Supply (Volts) : 115v, 60Hz, 20 amp dedicated line req.
• User Type : Large Office
• Optional Accessories : Side Tables, Cutter Knife, Cutter Stick
• Applications : Print Shops, Copy Centers, Designers
• Cutting : Material Paper
• LED Laser Cut Line : Yes
• Safety Feature : Comprehensive SCS Safety Package

DEMO VIDEO

Safety Features

• IR light beam safety curtain on the front table
• Safety cover on rear table
• Main switch and safety lock with key
• 24-volt controls (low voltage)
• Patented IDEAL safety drive
• Automatic blade and clamp return from every position
• Disc brake for instant blade stop
• Blade changing device covers cutting edge of the blade
• Blade depth adjustment from outside of the machine

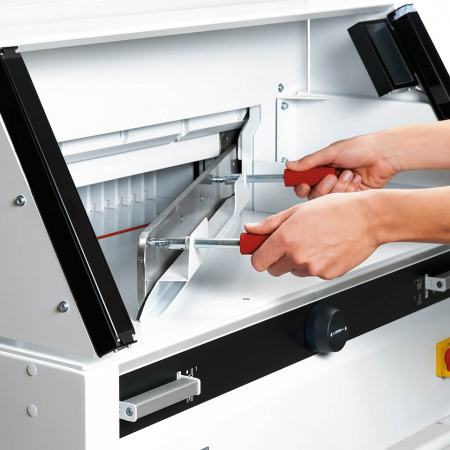

• Blade and cutting stick can be changed without removing covers

Characteristics

• Programmable cutter with automatic clamp
• Power back gauge
• Digital Touchpad

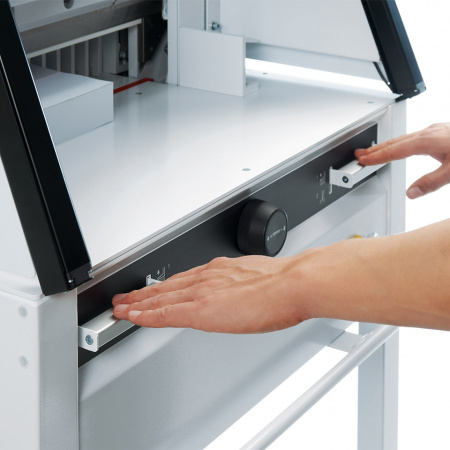

• Patented easy cut electronic blade activation bars for true two-hand operation
• Ergonomic, 37 Inch working height
• Electric blade and clamp drive
• Electric back gauge drive with touchpad for easy programming
• Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
• Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
• Pre-programmed for standard paper sizes. Memory key for repeat cuts
• Automatic set function for reference measurement and eject function for pushing out paper
• Self-diagnostic system with error indication on the display

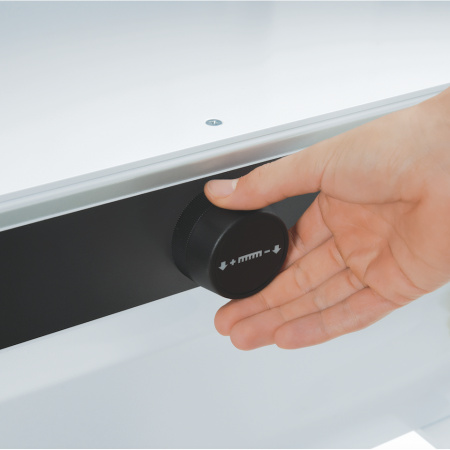

• Electronic back gauge control with variable speed control for manual back gauge setting
• Bright, LED optical cutting line
• 3-step, LED front table illumination
• Adjustable, spindle guided back gauge with narrow separations and plastic gliders
• Dual side guides on front and rear tables
• Solid steel blade carrier and adjustable blade guides
• All-metal construction
• Includes stand with storage shelf, easy-access tool holder, and paper blocking tool
• Optional side tables increase the work surface
• UL and C UL approved

Warranty

• 1-year limited warranty, excluding wearables
