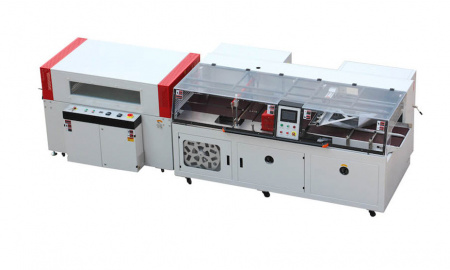

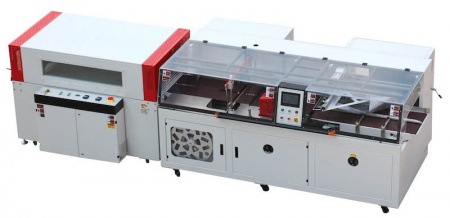

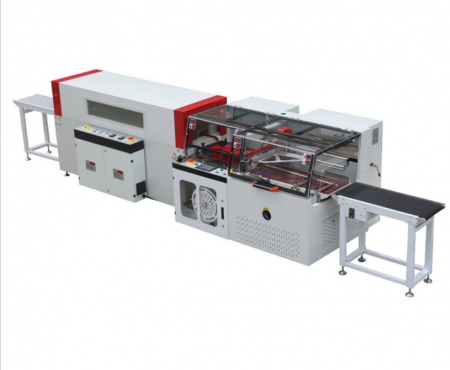

Side Seal Machine | Preferred Pack PP-5545TBJ-F (3 Belt) Continuous Motion Side Seal Machine

Preferred Pack” Model PP-5545TBJ-F (3 Belt) Continuous Motion Fully Automatic Servo Driven Side Seal with 6 ft “Flighted Infeed” Conveyor Included, Infinite Package length, 20” Cross Seal Bar. Machine will handle package sizes up to 6” tall. Continuous Motion Cross Seal Bar allows for production speeds up to 80 PPM depending on package length, package height and film thickness, etc.

FEATURES

• Side Seal System will seal all commercially available polyolefin and polyethylene films.
• Omron Inverter Drives with Variable Speed Drive 0 to 100 FPM
• This machine uses (7) Omron Servo Motor Drives, 3 for the conveyors front, middle, and discharge, 1 for the infeed conveyor, 1 for the down motion of seal head, 1 for sealing height, and 1 for the continuous motion
• 3 belt design provides for smooth product transition from infeed belt to side seal, then through cross seal bar.
• Omron PLC – Program Logic Controller, for easy reliable operation.
• Teflon Coated-Hot knife Cross Seal Bar 20” wide, No “Sealing Wire”, Maximum Package Height 6”, Maximum Pkg Width 16”
• Omron Independent digital temperature controls for side seal and cross seal 0-400 F
• Omron Color Touch Screen control panel for easy setup.
• Motorized scrap wind-up the wheel with built-in alarm when full.
• Emergency stop switch with the reset button.
• Adjustments for bag size front and back
• Automatic pinwheel hole punch.
• Rear mounted film carriage for easy operator loading of film
• Accepts random length products with no changeover required.
• Film Roll Dimensions: Minimum= 10” / Maximum=20”
• Adjustable height legs with locking casters.
• Fully enclosed seal area with safety interlocks on all doors, exceeds OSHA safety standards.
• 2 Meter “Flighted Infeed Conveyor” for easy hand loading of packages onto the infeed conveyor
• Your PP-5545TBJ Side Seal Machine comes fully crated and bolted to a heavy-duty fully enclosed pallet to protect your machine during shipment.

SPECIFICATIONS

• Electrical:220 Volt, 1 phase
• Power:4kw (4000 watts)
• Air:5-6 CFM at 80 PSI
• Max Pkg Length:Unlimited
• Cross Seal Width:20 Inches
• Max Seal Head Height:6 Inches
• Max Pkg Size:Combination of Width and Height can not exceed 16”
• Net Weight:1,100kg (2,420 Lbs)
• Machine Dimensions:107 L x 58 W x 51 H Inches
• Warranty:1 year on all parts
