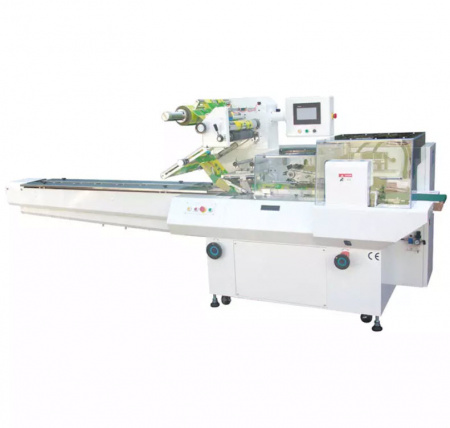

Flow Wrapper - Box Motion End Sealing S-5561-BX Box Motion Servo Flow Wrapper

Call Toll Free: 877.336.6877 for Pricing

Availability
Online
In Store
Same Day

Description

Flow Wrapper - Box Motion End Sealing S-5561-BX Box Motion Servo Flow Wrapper

Flow Packing Wrapping Machine for
• Cakes • Masks • Biscuits & Snacks • Candy & Confectionery • Refrigerated & Frozen Food • Fresh • Shrink Packaging • Wet Wipes / Tissue • Printing Items • Detergents • Masks • Pharmaceutical & Medical • Hardware & Tools • Instant Noodles, and • Miscellaneous

The S-5561-BX Box Motion End Sealing Flow Wrapper offers the ideal solution for hermetic sealing in low temperatures, excellent end seal gusset, and less air package. This model with gas flushing is good for Modified Atmosphere Packaging (MAP).

Thanks to the box motion end sealing system, the model is capable of covering a wide range of applications with less air packages and hermetic sealing.

DEMO VIDEO




FEATURES

  • 1 set of box motion end sealing jaw for excellent hermetic sealing.
  • 1 axis servo motor driven system.
  • Siemens PLC program control.
  • Shinko P.I.D. temperature control modular.
  • 7" colorful touch screen with 50 sets of products data memories.
  • Print mark registration with Japanese Panasonic sensor as a standard function.
  • Home button makes the items setting exchange easy.
  • Overload protection for end sealer with auto disengage function.
  • Top brush belt makes the items transfer smoothly at high running speed.
  • Dancing roller and motorized film feeding roller make the film supply tension stable.

SPECIFICATIONS

  • Capacity (PPM): 20 ~ 70
  • Bag Length (mm): 170 ~ 500 (6.69 ~ 19.68 Inches)
  • Max. Film Width (mm): 610 (24 Inches)
  • Max. Product Width (mm): 250 (9.84 Inches)
  • Max. Product Height (mm): 70 / 100 mm (2.75 / 3.93 Inches) with jaws Dia. in 120/ 160 mm (4.72 / 6.29 Inches)
  • Electricity: 4.2 Kw - AC-220 / 380 / 450 Volt - 3 phase + Ground

logo

Other Flow Wrapping Machine with Different Specifications - Box Motion Servo Flow Wrapper

S-5547-BX Box Motion Servo Flow Wrapper

NOTE:The Max. product height is according to the applications & products range.
A higher product is available as requested.

Optional Accessory

  • Date printing device.
  • Extended in-feed length.
  • End seal gusset device.
  • Online labeling device.
  • Additional film reel holder.
  • Auto feeding system.
  • Gas flushing device.
  • End seal euro hole / round hole punch.
  • Stainless steel machine construction finishing.

Packaging Applications

Specifications

Manufacturer Part #: S-5561-BX

SPECIFICATIONS

  • Capacity (PPM): 20 ~ 70
  • Bag Length (mm): 170 ~ 500 (6.69 ~ 19.68 Inches)
  • Max. Film Width (mm): 610 (24 Inches)
  • Max. Product Width (mm): 250 (9.84 Inches)
  • Max. Product Height (mm): 70 / 100 mm (2.75 / 3.93 Inches) with jaws Dia. in 120/ 160 mm (4.72 / 6.29 Inches)
  • Electricity: 4.2 Kw - AC-220 / 380 / 450 Volt - 3 phase + Ground
