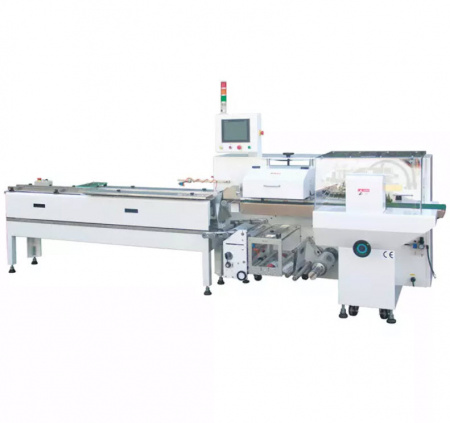

Flow Wrapping Machine - S-5647-IV-BX Top Sealing - Box Motion Flow Wrapper Machine

Flow Packing Wrapping Machine for
• Cakes • Masks • Biscuits & Snacks • Candy & Confectionery • Refrigerated & Frozen Food • Fresh • Shrink Packaging • Wet Wipes / Tissue • Printing Items • Detergents • Masks • Pharmaceutical & Medical • Hardware & Tools • Instant Noodles, and • Miscellaneous

The S-5647-IV-BX Top Sealing Flow Wrapper is an ideal packaging machine for soft, irregular, or difficult-to-handle product packaging and for multi-packs as well, with the products transported on the top of the film from the bag former to the cutting section, minimizing jams and ensuring superior package appearance.

Great packaging solution for soft items, vegetables, fruits, etc., the wrapper produces finished packages with less air and achieves optimal hermetic sealing.

FEATURES

• Powder coating machine frame construction.
• 3-axis servo motor drive for in-feed, fin sealing, and end sealing.
• Yaskawa motion controller.
• 10.4" colorful touch panel (HMI).
• 100 sets of product data memories.
• Shinko P.I.D. temperature control modular.
• One set of box motion end sealing jaw.
• One set of auto-centering reel holders.
• Two sets of the inverted center sealing wheel, one cold & one heated.
• Japanese Panasonic photocell for film registration.
• Transfer belt under the center sealing station.
• 2 M long top chain in-feed conveyor with adjustable guides.
• Safety protection guards for end sealing station.
• End sealer over-load protection device.
• European CE safety standards.

SPECIFICATIONS

• Capacity (PPM): 20 ~ 90
• Bag Length (mm): 70 ~ 350 mm (2.75 ~ 13.77 Inches)
• Max. Film Width (mm): 470 mm (18.50 Inches)
• Max. Product Width (mm): 190 mm (7.48 Inches)
• Max. Product Height (mm): 30 / 60 / 90 mm (1.18 / 2.36 / 3.54 Inches) with jaws Dia. in 88 / 120/ 160 mm (3.46 / 4.72 / 6.29 Inches)
• Electricity: 4.1Kw - AC-220 Volt - 3 phase + Ground

Other Flow Wrapping Machine with Different Specifications - Top Sealing - Box Motion Flow Wrapper Machine

S-5635-IV-BX Top Sealing - Box Motion Flow Wrapper Machine

S-5661-IV-BX Top Sealing - Box Motion Flow Wrapper Machine

NOTE: The Max. product height is according to the applications & product range.
A higher product is available as requested.

Optional Accessory

• Date printing device.
• Extended in-feed length.
• End seal gusset device.
• Online labeling device.
• Additional film reel holder.
• Auto feeding system.
• Gas flushing device.
• End seal euro hole / round hole punch.
• Stainless steel machine construction finishing.

Packaging Applications

Bakery Packaging

• Pineapple Cake / Pineapple Pastry Packaging
• Tortilla Packaging
• Waffle Packaging
• Muffin Packaging
• Chocolate Bar Packaging
• Toast Packaging
• Bread Packaging
• Croissant Packaging
• Bun Packaging
• Mooncake Packaging
• Maamoul Packaging
• Layer Cake / Swiss Roll Packaging

Biscuits & Snacks Packaging

• Biscuit Packaging
• Cookie Packaging
• Cracker Packaging
• Nougat Cracker Packaging
• Cereal Bar Packaging
• Wafer Packaging

Candy & Confectionery Packaging

• Cubic Pastry / Baked Wheat Cookies Packaging
• Candy Packaging
• Date Packaging
• Nougat Candy Packaging
• Peanut Brittle Packaging
• Sesame Brittle Packaging
• Date Walnut Packaging

Refrigerated & Frozen Food Packaging

• Fish Ball Packaging
• Dim Sum Packaging
• Ice Cream Packaging
• Mutton Hot Pot Packaging
• Steamed Bun / Mantou Packaging

Fresh Packaging

• Vegetable Packaging
• Tomato Packaging
• Apple Packaging
• Asparagus Packaging
• Fruit Packaging

Shrink Packaging

• Bottle Shrink Packaging
• Soap Shrink Packaging
• Baguette Pizza Shrink Packaging

Wet Wipes / Tissue Packaging

• Wet Wipes Packaging
• Tissue Packaging

Printing Items Packaging

• Paper Air Freshener Packaging
• Game Card Packaging
• Red Envelope Packaging

Detergents Packaging

• Scrub Sponge Packaging
• Soap Packaging

Pharmaceutical & Medical Packaging

• Gauze Mask Packaging
• IV Bag Packaging
• Gauze Bandage Packaging
• Enema Packaging
• Gui-Lu-Er-Xian-Jiao Packaging
• Patch Packaging

Hardware & Tool Packaging

• Oil Seal Packaging
• Bearing Packaging

Instant Noodles Packaging

• Instant Noodle Packaging

Miscellaneous Packaging

• Razor Packaging
• Cutlery Packaging
• Filter Cartridge Packaging
• Roach Bait Packaging
• Vapor Cartridge Packaging
• Anti-Mold Packet Packaging
• Glasses Packaging
• Clay Packaging
• Condom Packaging
• Perforating Cut Packing Style
• Tray Packaging
