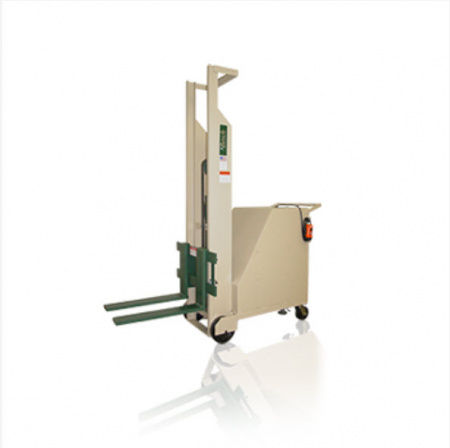

Beech Design CW-765 Counter Balanced Weight Stackers

Beech CW-765 Counterbalanced Stacker with 500-pound capacity at a 13 Inches load center. Beech Lift height of 76 Inches. Forks reach completely to the floor when lowered. Beech Counterweight included at no additional cost. Beech in-house manufactured hydraulic rams are oversized for years of trouble-free service. All dynamic seals are poly packs, not O-rings. Forks are heavy-duty 4 Inches wide 1 Inch thick solid steel and adjustable from 8 Inches to 26 1/2 Inches O.D. Roller chain with over 9000 lb. yield. Floor lock is standard. For ease of movement, oversize roller bearing phenolic 8 Inches diameter x 2 Inches wide load wheels and 5 Inches diameter x 2 Inches wide steering casters are standard, optional wheels available. Heavy-duty deep-cycle battery and a 10 amp automatic built-in charger. A safety bypass relief valve is standard to prevent dangerous overloading. Each machine is factory-proof and tested to 150% capacity. The power unit hood is angled down and away from the operator to allow an unobstructed view of forks and load. 2-year warranty on the entire machine. 5 years on frame weldment.

FEATURES

• 1000-pound and 500-pound capacity models at a 13 Inches load center
• Lift heights of 66 Inches and 76 Inches. Forks reach completely to the floor when lowered.
• Hydraulic rams are oversized for years of trouble-free service
• Forks are heavy-duty 4 Inches wide 1 Inch thick solid steel and adjustable from 8 Inches to 26 1/2 Inches O.D.
• Floor lock is standard
• For ease of movement, oversize roller bearing phenolic 8 Inches diameter x 2 Inches wide load wheels and 5 Inches diameter x 2 Inches wide steering casters are standard
• Heavy-duty deep-cycle battery and a 10 amp automatic built-in charger
• Safety bypass relief valve is standard to prevent dangerous overloading
• 2-year warranty on the entire machine. 5 years on frame weldment

SPECIFICATIONS

• Overall Dimensions: 22 Inch wide x 43 Inch long x 92 Inch tall
• Capacity: 500-pound capacity.
• Fork Height Range: 1 - 76 Inch.
• Load Centers: 13 Inch
• Fork Length: 25 Inch.
• Fork O.D. Range: 8 -26.5 Inch
• Front wheel diameters: 5 x 2 Inch
• Rear wheel diameters: 4 x 2 Inch
• Machine weight: 946 pounds.
