Description

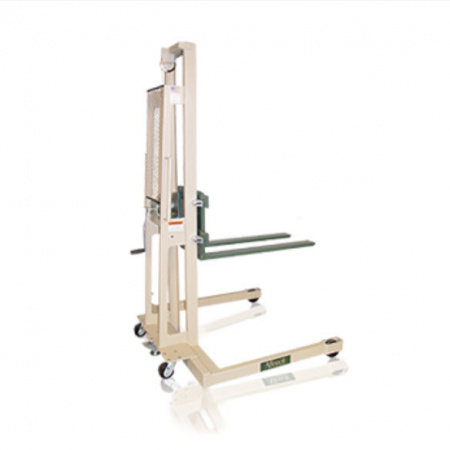

Beech Design SS-4266W Winch Pallet Stacker

A more economical alternative to our Hydraulic Pallet Stacker, the Winch Pallet Stacker does not sacrifice the outstanding quality and rugged durability all Beech Equipment offers.

Our Winch Pallet Stacker is available in lift heights up to 76 Inches and features an oversize winch for ease of operation.

FEATURES

• 1000-pound capacity at a 24 Inches load center.
• Lift heights of 56 Inches, 66 Inches, and 76 Inches. Forks reach completely to the floor when lowered.
• Oversized winch for ease of use and years of trouble-free operation.
• Forks are heavy-duty 4 Inches wide 1 Inches thick solid steel and adjustable from 8 Inches to 26-½ Inches O.D.
• Galvanized aircraft cable with over 4200 lb. yield.
• The floor lock is standard.
• 2 Inches x 5 Inches load wheels, 2 Inches x 4 Inches steering casters, phenolic wheels with roller bearings, and grease fittings are standard.
• Safety shield provides the operator with unobstructed vision.

SPECIFICATIONS

• Fork Length: 36 Inch
• Legs ID: 42 Inch
• Legs OD: 50 Inch.
• Overall Length: 53 Inch
• Overall Heigh: 82 Inch.
• Load Center: 24 Inch
• Fork Height Range: 1 - 66 Inch
• Machine Weight: 428 pounds.
