Description

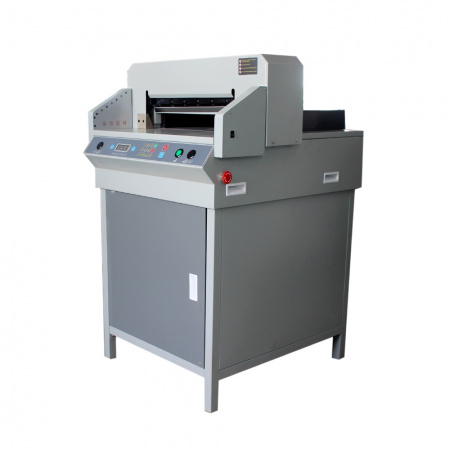

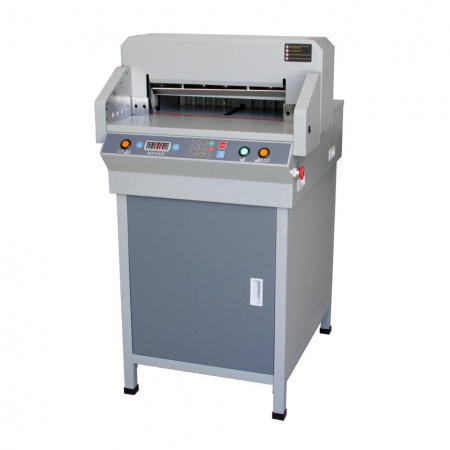

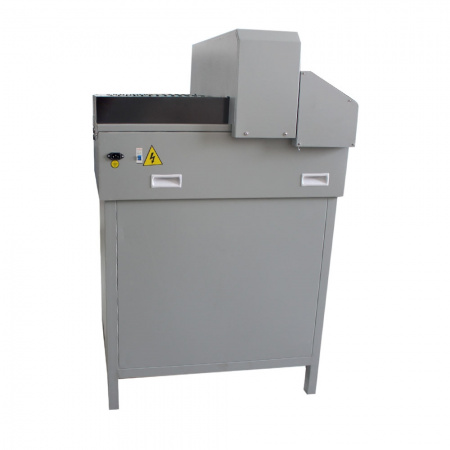

DK19PLC Compact Eco Electric Paper Cutter

Designed for the office, school, and small copy shop environment as a mid-volume cutter.
Cutting width of up to 19 Inches with separate motor clamping mechanism.
Maximum cut height of 2.4" combining a Keypad back gauge readout for accuracy.
Minimum Cut Length size 1.6”
I.R. Safety Walls with Single Body Cast Iron Frame.

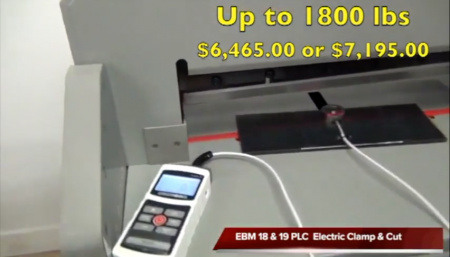

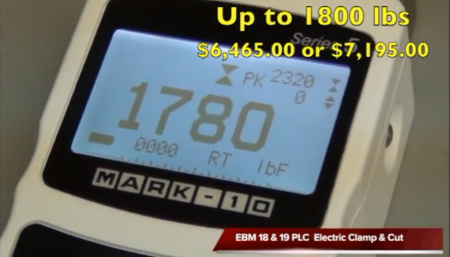

Special Order Maximum Clamping Pressure of 1800 psi.
Separate Cut and Clamp Motors.
Shipped in a crate with a 1 year manufactures warranty.
Warranty: YouTube Technical sight admission with many videos that range from cutter operation to blade replacement and other service replacement functions. Our USA 855 service number for support and technical contact.

FEATURES

• Design for Medium Production

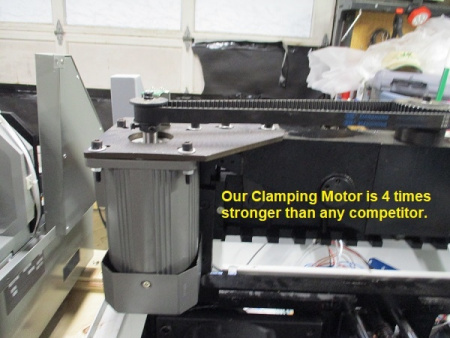

• Independent Clamp Motor for stronger paper hold while cutting
• Capacity for full ream under the clamp
• IR Safety Curtain Walls with Non-stop Production in Mind
• Designed for American copy-size paper stocks
• Spec LED bright red cut line for following crop marks

SPECIFICATIONS

• Distance Programmable: Yes
• Intelligent Memory: Yes
• Programmable Auto Push Out: Yes
• Cut Line: Bright LED Red
• Cut Precision: 0.001"

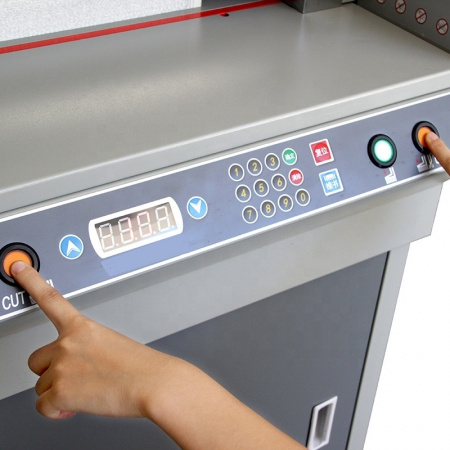

• Safety: IR Curtain, Dual Cut Button, Emergency Stop
• Independent Paper Clamp Motor: Yes, Single Button 380 psi
• Max Cut Width: 18.9"
• Min Cut Length: 1.55"
• Max Cut Thickness: 2.4"
• Cut Length Behind Knife: 18:9"
• Table Length in Front of Knife: 10.25"
• Back Gauge Drive: Spindle Guide Rod
• Back Gauge Positioning: Key Pad, Variable Speed
• Blade Adjustment: Fine Depth Height from outside of the machine
• Volts: 110 60Hz
• Amp Draw: 15
• Machine Dimensions: 28.5" x 36.3/4" x 48.5"
• Weight: 375 lb
• Shipping Dimensions: 36" x 38" 44"
• Shipping Weight: 410 lb

If you have any questions or concerns, contact a customer service representative today.
