Preferred Pack Model 55-GTV Vertical Pillow Pack Machine with Volumetric Cup Filler

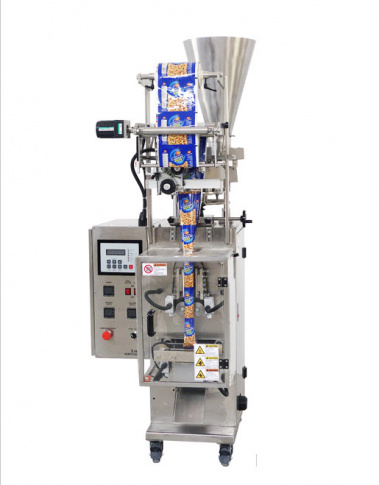

Preferred Pack Model 55-GTV Vertical Pillow Pack Machine with a Fin Seal that includes a “Volumetric Cup Filler”. The Model 55-GTV is a continuous cam-driven vertical form fill and seal for pillow packs of instant coffee beans, grains, nuts, etc.

The film reel is mounted on the top of the machine with our innovative film reel suspension, the dancer system ensures the film's tension and stability of the film roll unwind. The film passes the in-feed system and enters the forming device which forms into a tubular shape. It is sealed at the top and bottom and along the back side of the package. The product is then dropped into the bag through the forming tube where the draw-off roller pair transports the film downwards with a constant force. The bag is sealed at the top and the rotary knife system cuts off the tube into individual bags to complete the packaging process.

The 55-GTV features a single output system with a rotary knife to cut the bags apart and discharge 1 bags per cycle.

The end product is discharged in the front of the machine by a discharge guide directly into a carton box or plastic tray. An optional discharge conveyor redirects the discharge to the side of the machine. The 55-GTV is engineered to meet long work-shifts and operates under continuous workloads, through its mechanically driven systems which deliver solid performance.

FEATURES

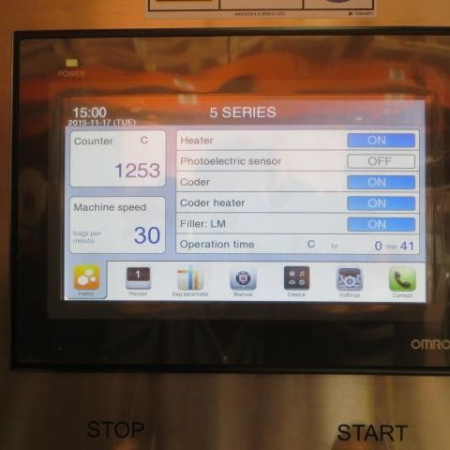

• 7 Inches Omron color touch-screen HMI;

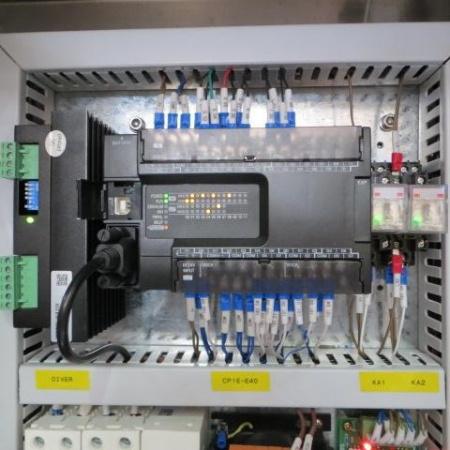

• Machine functions controlled by Omron PLC
• English / Spanish machine interface;
• 32 program recipe;
• Machine construction in # 304 Stainless Steel Frame;
• Auto diagnosis with on-screen error display for easy troubleshooting
• Bag length controlled by step-motor or photoelectric sensor
• Cam-assembly driven sealing jaw system
• Cam-assembly driven rotary knife system
• Cam-assembly driven volumetric cup filler
• Constant heat sealing system
• Film transport by drawing off the quarter roller
• Forming device hand-crafted for film smoothness
• Panasonic LX Photoelectric sensor with R.G.B. all-color detection
• P.I.D. digital temperature controller heats up to 150°C in less than 10 minutes
• Reel film clamping for fixation;
• Teflon-coated sealing jaws;
• Reel unwind mechanism driven by A.C. motor
• Safety guards
• Step-less speed control by the variable speed controller

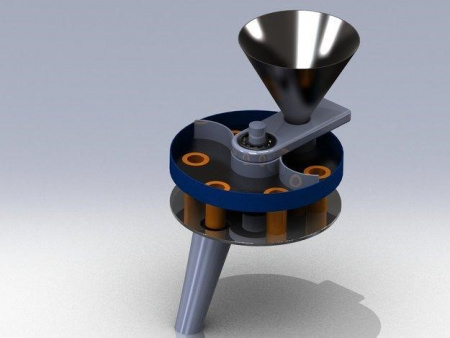

• Turntable Volumetric cup filler driven by camshaft;
• 12 Liter product hopper with vibrator feeder;
• Volumetric cup filler with hand-wheel volume adjustment;
• Fill volumes are adjusted by telescoping cups;
• One forming device included.

SPECIFICATIONS

• Bag origin: Film reel
• Fill Volume:TBD
• Bag width: 25 - 80 mm | 1 –3.15 Inch
• Bag length: 40 - 170 mm | 1.5” – 6.7 Inch
• Roll width:50 - 205 mm | 2 – 8 Inch
• Bag Style:Stick Pack
• Cutting style: Serrated, Straight-cut or Perforated
• Machine speed:28-60 (BPM)
• Machine weight (kg):205kg / (455 lbs)
• Machine dimensions: L760 x W700 x H1700 MM (30L x 28W x 67H Inches)
• Power (kW):1.5 (1500w)
• Voltage:220VAC, 60Hz, 1-Phase
• Compressed Air: Not required

Note: Changing bag length does not require any change parts, changing bag width or bag style requires changing forming device.
Machine speed is subject to the gear ratio range, which is chosen according to product flow rate and packing volumes.
Turntable volumetric filler measures product by volume, maintaining an even density of product for higher accuracy.
