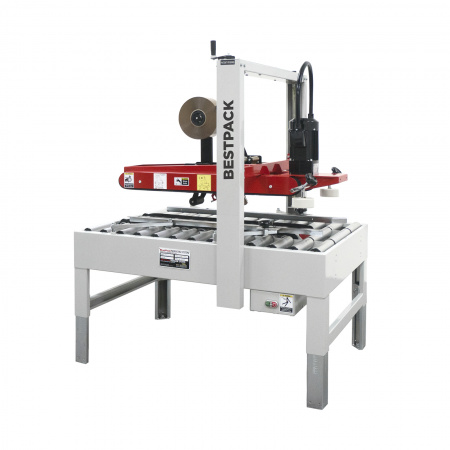

Carton Sealer | BestPack MTLW Series Carton Sealing Machines

The BestPack™ MTLW Series are Semi-Automatic Adjustable Tape Carton Sealers engineered for economical, effective operator-fed closure applications. The MTLW’s air-driven brush tucks the leading and trailing tabs that hang over the bottom of the carton. This brush facilitates the top sealing of cartons from a min. height of 1/2 Inch high, three inches lower than the MTD’s min. height of 3.5 Inches.

All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance and come with high-speed tape heads with tab adjustment. Available with 2 Inches or 3 Inches tape heads.

STANDARD FEATURES

• Heavy Duty 2mm CNC Cut and Welded Frame Including Upper Welded Legs
• Four Belt Drive System (2 Top and 2 Bottom) with Idler Rollers Behind the 1-piece Die Molded Belts that also Includes V-belt Guide
• Air-Driven Bottom Brush that Allows for Low Top Seal Down to 0.5 Inch in Height
• Top and Bottom Tape Head Included for Top and
• Bottom Seal Down to 3.5 Inches in Height
• Accepts 2 Inches or 3 Inches Pop-out BestPack High-Speed Tape Heads
• Upper Side Compression Unit
• Individually Adjustable Side Width Guide Rails
• Height Adjustment Handle can be Mounted on Either Side of the Carton Sealer
• Electrical On/Off Box can be Mounted on Either Side of the Sealer (Left Side is Standard)
• Adjustable Bed Height from 20.5 Inches to 30.0 Inches
• Tape Roll Lengths: 1,000 yd. and 1,500 yd.
• UL Approved Electrical Parts

OPTIONS

• Spare Parts Kit
• High Speed Motor Upgrade (Up to 125 ft. per min.)
• Infeed/Exit Conveyor w/ L-Bracket Stabilizer
• Heavy Duty Dual Locking Casters
• Interlock Safety Gates
• Food Grade 304 Stainless Steel

SPECIFICATIONS

• SPEED: Up to 40 Cartons/min.
• POWER REQUIREMENTS: 110 Volts 60 Hz
• AIR REQUIREMENTS: 60-75 PSI, 2-3 SCFM

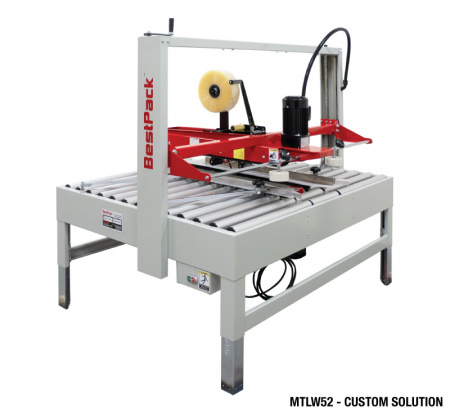

POPULAR MTLW MODELS

(Please refer to the below chart for a comparison of models.)
Please Check The Variation Table (on top Right) to Order any of these Models

EXTRA ACCESSORIES TO IMPROVE EFFICIENCY

DEMO VIDEO
