Description

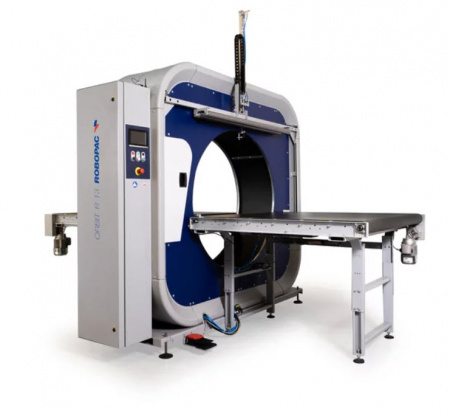

Stretch Wrapping Machines | Robopac Orbit R5 Horizontal Stretch Wrapper

The Orbit Range is where two technologies meet. The flexibility needed by high-speed and high-performance line machines becomes available on Entry Level horizontal machines to be added to work cells or integrated lines.

The Orbit R is a rotating ring machine for spiral wrapping elongated products. This orbital stretch wrap machine is equipped with electro-welded mesh safety guards to protect the operator during operation.

Infeed and outfeed units automatically adjust to ensure proper stabilization of the product. The length of the run can be adjusted manually, if needed, to compensate for products of varying heights. Plus, the highly reliable, dual rod cut and clamp system fully automates the wrapping process.

The seven (7) inch-color touch screen provides complete control of all processes with the touch of a finger. Accurate, easy-to-understand controls are displayed on every screen allowing for quick and simple operation. Store up to 20 unique, user-defined wrapping programs with this orbital pallet wrapper

EASY TO OPERATE

Orbit R horizontal stretch wrapper - Understanding the HMI icons and how to thread the carriage

How to set wrap patterns on Robopac Orbit R horizontal stretch wrapper

SPECIFICATIONS

• Ring Diameter mm : 520
• Reel Width W mm : 120/250
• Ring Rotation Speed rpm : up to 180 (W=125 mm) up to 150 (W=250 mm)
• Working Pressure bar : 6
• Clamping and Cutting Unit : Std
• Power Supply Voltage : V 400 V 3Ph + N
• Power Supply Frequency : Hz 50
• Installed Power : kW 1,6

DEMO VIDEO

ORBIT R STRETCH WRAPPING

Robopac Orbit R9 Horizontal Stretch Wrapper
Robopac Orbit R13 Horizontal Stretch Wrapper
